3R-3-9131HP – Transmission Yokes – 31/32 X 1.391 Splines – 1.886″ Hub Dia – Center U Joint To End 7.500
$165.25
Description

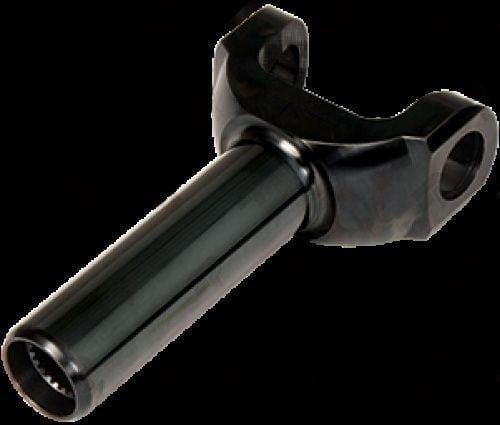

The 3R-3-9131HP Transmission Yoke is specifically engineered for Short TH400 applications, making it a reliable choice for high-performance builds. This yoke features a unique spline configuration of 31/32 X 1.391, which is critical for ensuring a secure connection to the driveshaft. The hub diameter measures 1.886 inches, providing a robust interface with the mating components.
One of the standout features of the 3R-3-9131HP is its construction from forged steel and chromoly. This combination not only enhances strength but also ensures longevity under demanding conditions. When comparing it to other yokes, such as those from the 1310 or 1350 series, the 3R series offers distinct spline dimensions that are crucial for compatibility with specific U-joint sizes. Using a yoke that does not match these specifications can lead to improper fitment and potential failure during operation.
- Center U Joint To End: 7.500 inches
- Hub Diameter: 1.886 inches
- Splines Count: 31/32 X 1.391
- Material: Forged Steel / Chromoly
- Application: Short TH400
When installing the 3R-3-9131HP, ensure that you check the spline engagement depth and verify phasing with the opposite yoke to avoid any misalignment issues. This yoke is designed to handle the demands of performance applications, making it an essential component for any serious builder.
| Center u joint to end | 7.500 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.886 |
| Notes | Short TH400 / Forged Steel / CHROMOLY |
| Partn number | 3R-3-9131HP |
| Remaining stock | <10 |
| Series | 3R |
| Splines count dia | 31/32 X 1.391 |
