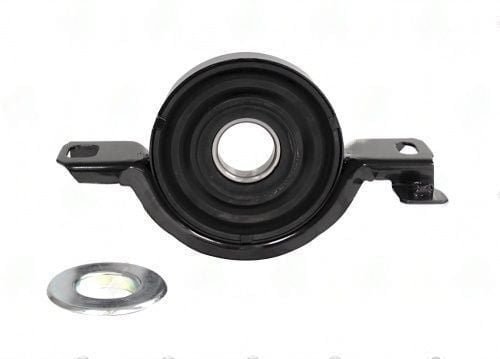

3680-45 – Center Support Bearing – Gm Application – 1.181″ ID – 250″ Center Bearing To Base

The 3680-45 center support bearing plays a vital role in the driveline of GM vehicles, particularly the Cadillac SRX. This bearing supports a two-piece driveshaft at its midpoint, maintaining alignment and minimizing whip during operation. With a bearing inner diameter of 1.181 inches and a center-to-base height of 0.250 inches, it ensures a snug fit that is critical for effective performance.

One of the key specifications of the 3680-45 is the center-to-center distance of 6.750 inches between the mounting holes. This dimension is essential to prevent any misalignment that could lead to vibration or premature wear. The rubber isolator in this bearing absorbs vibrations, and any deterioration or hardening of this isolator can result in noticeable driveline vibrations, especially at highway speeds.

When installing the 3680-45, it’s important to avoid pre-loading the rubber isolator. Proper alignment of the mounting bracket before tightening is crucial to maintain the correct operating angle of the driveshaft. Here are some installation tips:

• Ensure the mounting bracket is aligned before tightening.
• Do not pre-load the rubber isolator during installation.
• Check for driveshaft runout after installation.

By adhering to these guidelines, you can maximize the lifespan and performance of the 3680-45 center support bearing in your GM application.
