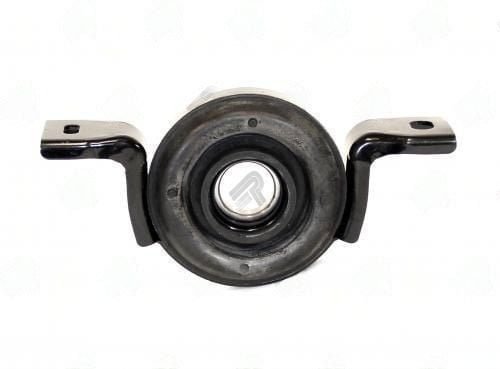

3680-15 – Center Support Bearing – Gm Application – 1.181″ ID – 2.625″ Center Bearing To Base
$96.77
10 in stock
Description
When a customer reports a vibration at highway speeds in their Chevy Equinox, Pontiac Torrent, or GMC Terrain, the culprit often lies in the center support bearing. The 3680-15 is engineered specifically for these GM applications, providing essential support and alignment for a two-piece driveshaft. With a bearing inner diameter of 1.181 inches and a center-to-base height of 2.625 inches, this part plays a critical role in maintaining driveline stability.
Over time, the rubber isolator in the bearing can deteriorate, leading to increased vibration and noise. If the isolator hardens or collapses, it can cause significant driveline issues. The 3680-15 addresses these problems effectively by ensuring proper alignment and reducing whip in the driveshaft, which is vital for smooth operation.
Installation is straightforward, but attention to detail is crucial. Here are some tips to ensure a successful installation:
- Do not pre-load the rubber isolator during installation.
- Align the mounting bracket before tightening the bolts.
- Check driveshaft runout after installation to ensure optimal performance.
In summary, the 3680-15 center support bearing is a reliable solution for maintaining the integrity of the driveshaft in GM vehicles. By addressing common failure symptoms, this part ensures a smoother ride and longer component life.
| Application |
GM |
|---|---|
| Bearing id |
1.181 |
| Center bearing to base |
2.625 |
| Ctr to ctr of mount holes |
7.500 |
| Notes |
Chevy Equinox / Pontiac Torrent / GMC Terrain |
| Partn number |
3680-15 |
| Remaining stock |
>10 |
