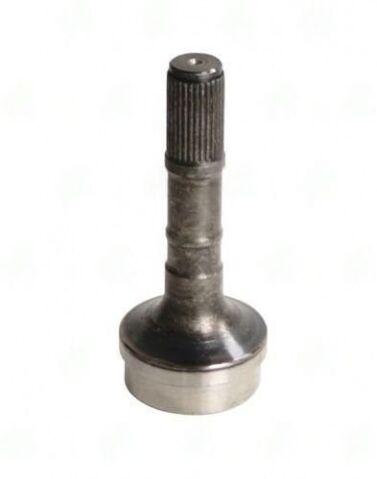

3642-251M – Stub & Midship Shaft – 30 X 0.950 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$87.81
Description
The 3642-251M Stub & Midship Shaft is engineered to deliver reliable torque transfer from the transmission to the differential, making it a critical component in your driveline assembly. This shaft features 30 X 0.950 splines, a butt diameter of 2.344 inches, and a tube diameter wall of 2.500 X 0.083 inches. Its length from end to weld measures 5.450 inches, ensuring a precise fit for applications requiring compatibility with the 3652-1001.
In vehicles that utilize this shaft, proper installation and alignment are crucial. The 3642-251M handles the demanding conditions of high torque and speed, and its design minimizes vibration, which is essential for maintaining driveline integrity. When installing, always verify the phasing marks and check for runout to prevent premature failure.
- Ensure spline count matches: 30 X 0.950
- Check butt diameter: 2.344 inches
- Confirm tube wall thickness: 0.083 inches
- Use with 3652-1001 for optimal performance
- Balance the assembly if vibration occurs
By understanding the specifications and installation requirements of the 3642-251M, you can ensure a smooth and efficient operation of your driveline system.
| Butt dia |
2.344 |
|---|---|
| End to weld |
5.450 |
| Notes |
used with 3652-1001 |
| Partn number |
3642-251M |
| Remaining stock |
<10 |
| Splines count dia |
30 X 0.950 |
| Splines length |
1.404 |
| Tube dia |
2.500 |
| Style |
CVJ |
| Tube wall |
0.083" |
