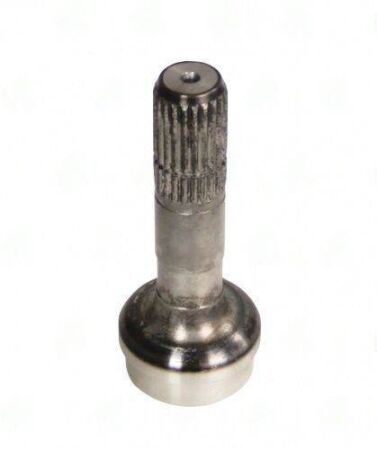

3642-171 – Stub & Midship Shaft – 22 x 0.960 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083
$100.70
13 People watching this product now!
Description
The 3642-171 Stub & Midship Shaft features 22 x 0.960 splines and a 1.844″ butt diameter, perfect for reliable torque transmission.
Full Description
When you encounter a driveline vibration or a failure in torque transmission, the 3642-171 Stub & Midship Shaft is often the solution. This specific shaft features 22 x 0.960 splines, a butt diameter of 1.844", and a tube wall thickness of 0.083". These specifications are critical for ensuring compatibility with your vehicle's transmission and differential setup. A common scenario arises when a vehicle experiences a noticeable vibration at certain speeds, often due to a misaligned or damaged shaft. In such cases, replacing the stub and midship shaft with the 3642-171 can restore smooth operation. The precise dimensions, including a splines length of 1.625" and an end-to-weld measurement of 4.375", ensure that this part fits seamlessly into your driveline system. Here are some practical tips for installation:
- Always verify the phasing marks before installation to prevent vibration issues.
- Check the runout of the shaft after installation to ensure it meets specifications.
- Torque all bolts to the manufacturer’s specifications to maintain integrity.
- Consider balancing the shaft if any vibrations persist after installation.
Additional information
| Butt dia | 1.844 |
|---|---|
| End to weld | 4.375 |
| Partn number | 3642-171 |
| Splines count dia | 22 x 0.960 |
| Splines length | 1.625 |
| Tube dia | 2.000 |
| Style | CVJ |
| Tube wall | 0.083" |
