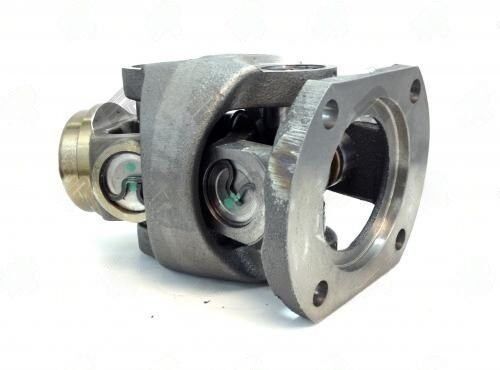

3590-313 – Cv Double Joints Heads – 1350 CV FLANGE Series – Bolt Circle Dia 4.250″ – Butt Dia 2.260
$396.22
1 in stock
Description
3590-313 is a Cv Double Joints Head specifically designed for the front shafts of Ram 2500 and 3500 models. This component is crucial for maintaining constant velocity power transfer, especially in applications where the driveline experiences variable angles. The 1350 CV FLANGE Series ensures compatibility and reliability under demanding conditions.
Key specifications of the 3590-313 include:
- Bolt Circle Dia: 4.250″
- Bolt Hole Dia: 460″
- Butt Dia: 2.260″
- Pilot Dia: 3.125″
- End To Weld: 5.94″
Engineers have designed this joint to handle the specific torque and load requirements of the Ram 2500/3500, ensuring optimal performance and durability. The fixed Rzeppa type joint at the outboard end allows for smooth articulation while maintaining a consistent speed, which is critical during turns and uneven terrain.
Installation is straightforward but requires attention to detail. Always pack the joint with the specified grease, use a new boot and clamps, and ensure proper clip engagement. Failure to do so can lead to symptoms like clicking noises during turns or grease contamination, which can compromise the integrity of the driveline.
In summary, the 3590-313 Cv Double Joints Head is engineered for reliability and performance in Ram 2500/3500 applications, making it an essential component for any driveline repair or upgrade.
| Bolt circle dia | 4.250 |
|---|---|
| Bolt hole dia | 460 |
| Butt dia | 2.260 |
| End to weld | 5.94 |
| Notes | Ram 2500/3500 front shaft |
| Partn number | 3590-313 |
| Pilot dia | 3.125 |
| Remaining stock | <10 |
| Style series | 1350 CV FLANGE |
| Tube dia wall | 2.50X0.120 |
