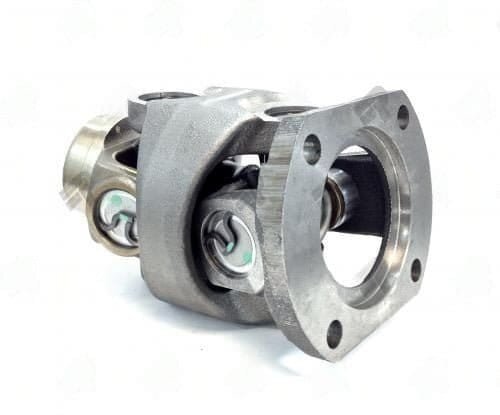

3590-312 – Cv Double Joints Heads – 1350 CV FLANGE Series – Bolt Circle Dia 4.250″ – Butt Dia 2.321
$306.37
2 in stock
Description
When diagnosing driveline issues, the 3590-312 CV joint head is critical for maintaining power transfer in Ram 2500 and 3500 front shafts. This component, part of the 1350 CV FLANGE Series, features a bolt circle diameter of 4.250 inches and a butt diameter of 2.321 inches, making it essential for proper fitment and performance.
Common failure symptoms include clicking noises during turns or vibrations that correlate with vehicle speed. These issues often stem from worn CV joints, which can lead to grease leakage and contamination. If you notice torn boots or excessive play in the joint, it’s time to consider replacing the 3590-312. Proper installation is key; ensure you pack it with the correct amount of grease, use a new boot and clamps, and verify clip engagement.
- Style Series: 1350 CV FLANGE
- Bolt Circle Diameter: 4.250 inches
- Butt Diameter: 2.321 inches
- Pilot Diameter: 3.125 inches
- End to Weld Length: 5.94 inches
Replacing a worn CV joint head with the 3590-312 restores the driveline’s integrity, ensuring smooth operation and reliable power transfer. This part is engineered to handle the demands of heavy-duty applications, making it a crucial component for your Ram 2500 or 3500.
| Bolt circle dia | 4.250 |
|---|---|
| Bolt hole dia | 460 |
| Butt dia | 2.321 |
| End to weld | 5.94 |
| Notes | Ram 2500/3500 front shaft |
| Partn number | 3590-312 |
| Pilot dia | 3.125 |
| Remaining stock | <10 |
| Style series | 1350 CV FLANGE |
| Tube dia wall | 2.50X0.095 |
