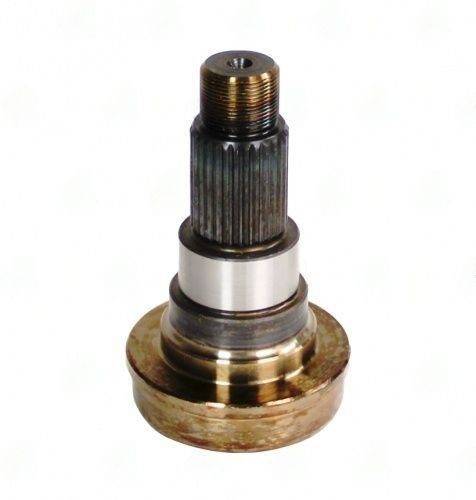

3553-293 – Stub & Midship Shaft – 29 X 1.276 Splines – Bearing Dia 1.574″ – Butt Dia 2.844
$76.19
Description
The 3553-293 Stub & Midship Shaft is a critical component in your driveline setup, specifically designed to handle the torque transmission from the transmission to the differential. With 29 X 1.276 splines and a bearing diameter of 1.574″, this shaft ensures a secure connection that can withstand the demands of various applications.
When diagnosing driveline issues, a worn or damaged stub and midship shaft can lead to symptoms such as vibrations during acceleration or a noticeable decrease in power transfer. If you notice a vibration that correlates with vehicle speed, it’s essential to inspect this shaft. A failure in this component can often be traced back to improper phasing or excessive runout, which can compromise the entire driveline system.
Key specifications of the 3553-293 include:
- 29 X 1.276 Splines
- Bearing Diameter: 1.574″
- Butt Diameter: 2.844″
- Tube Diameter: 3.000″
- End to Weld: 3.500″
Replacing a faulty stub and midship shaft with the 3553-293 restores the integrity of your driveline, ensuring smooth operation and optimal torque delivery. Always verify the spline count and ensure proper installation to maintain performance and reliability.
| Bearing dia |
1.574 |
|---|---|
| Butt dia |
2.844 |
| End to weld |
3.500 |
| Partn number |
3553-293 |
| Remaining stock |
>10 |
| Splines count dia |
29 X 1.276 |
| Splines length |
1.375 |
| Tube dia |
3.000 |
| Tube wall |
0.083" |
| Style |
FIXED |
