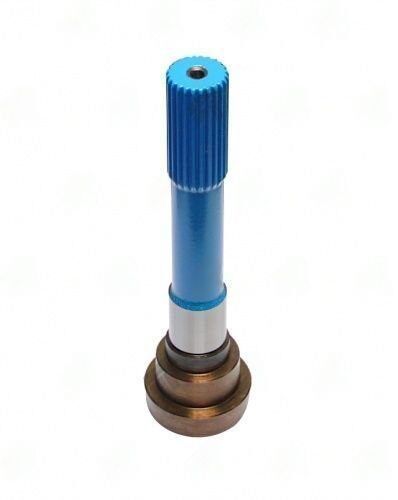

3553-241 – Stub & Midship Shaft – 23/24 X 1.562 Splines – Bearing Dia 1.574″ – Butt Dia 2.844
$61.94
Description
When working with the 3553-241 Stub & Midship Shaft, it’s crucial to ensure that you’re set up for a smooth installation. This shaft features a robust 3-inch diameter and a wall thickness of 0.083 inches, providing the strength needed for demanding applications. The 23/24 X 1.562 spline configuration is designed to fit specific U-joint series, so double-check that your existing components match this specification.
Before installation, verify the spline count and ensure that the bearing ID of 1.574 inches aligns with your support bearings. The spline length of 3 inches and the weld-to-end measurement of 10.625 inches are critical for maintaining proper alignment and preventing vibration issues. Remember, a common mistake is overlooking the phasing marks; ensure they are correctly aligned to avoid driveline vibrations.
- Check spline count against your existing shaft.
- Confirm bearing ID matches 1.574″ for a snug fit.
- Align phasing marks before installation.
- Torque fasteners to manufacturer specifications.
- Inspect for any runout before finalizing installation.
The 3553-241 Stub & Midship Shaft is engineered for optimal torque transfer and vibration control, making it a reliable choice for your driveline needs. Whether you’re working on a fleet vehicle or a performance build, this shaft delivers the performance you expect.
| Bearing dia | 1.574 |
|---|---|
| Butt dia | 2.844 |
| End to weld | 10.625 |
| Partn number | 3553-241 |
| Remaining stock | >10 |
| Splines count dia | 23/24 X 1.562 |
| Splines length | 3.000 |
| Tube dia | 3.000 |
| Tube wall | 0.083" |
| Style | Slip |
