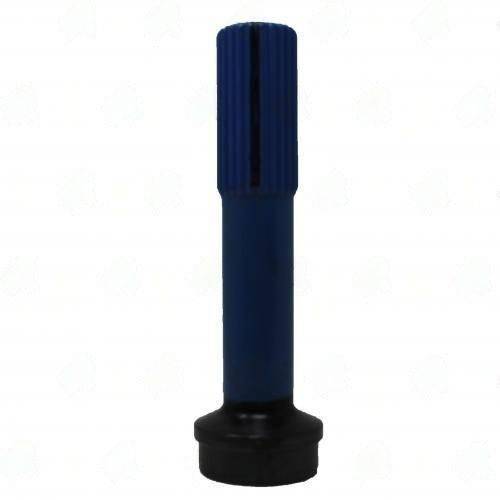

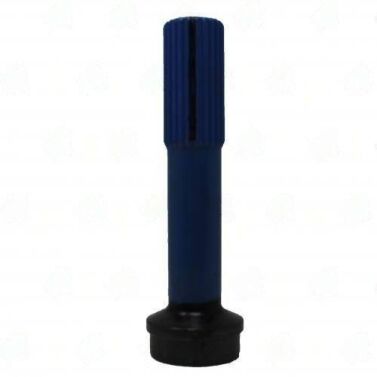

3540-242M – Stub & Midship Shaft – 23/24 X 1.562 Splines – Butt Dia 2.260″ – Tube Dia Wall 2.500X0.120
$56.78
Description
When you encounter a vibration issue during acceleration, it could be a sign of a failing stub and midship shaft. The 3540-242M Stub & Midship Shaft is engineered to handle the torque and load stability required in high-performance applications. With its 23/24 X 1.562 splines and a tube diameter of 2.500″, this shaft provides the necessary strength and durability to transmit torque effectively from the transmission to the differential.
Measuring 3.350″ in spline length and 7.775″ from end to weld, the 3540-242M is designed to fit precisely in various setups, ensuring that you maintain the correct phasing and alignment. The slip style allows for some flexibility in installation, accommodating slight variations in length while maintaining performance integrity. This part is compatible with several applications, including the 3503-241, 5503-241, and S3-3-7021x, making it a versatile choice for your driveline needs.
To ensure optimal performance, remember to:
- Verify phasing marks during installation.
- Check runout to prevent vibrations.
- Torque bolts to the manufacturer’s specifications.
- Balance the shaft if any vibrations are detected post-installation.
With the 3540-242M, you can trust that your driveline will operate smoothly and efficiently, reducing the risk of future failures.
| Butt dia |
2.260 |
|---|---|
| End to weld |
7.775 |
| Notes |
optional to use with: 3503-241 / 5503-241 /S3-3-7021x / 4103-241 / 3-3-7001 |
| Partn number |
3540-242M |
| Remaining stock |
<10 |
| Splines count dia |
23/24 X 1.562 |
| Splines length |
3.350 |
| Tube dia |
2.500 |
| Tube wall |
0.095" |
| Style |
Slip |
