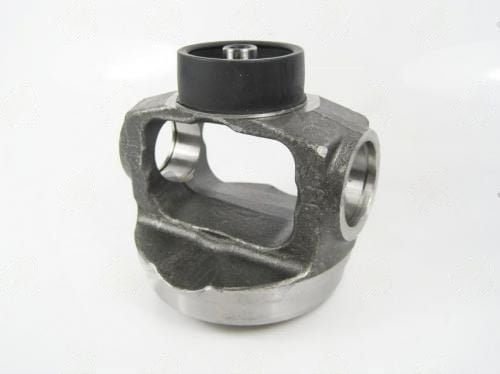

3526-35 – Ball Stud Yokes – 1350 Series – Ball Stud Length Dia 0.500X0.590 – Butt Dia 3.344

The 3526-35 Ball Stud Yoke is engineered to meet the demands of high-performance driveline applications. This yoke fits the 1350 Series, ensuring compatibility with a range of U-joints that share the same spline characteristics. The ball stud length diameter of 0.500X0.590 plays a crucial role in maintaining proper engagement with the mating components, which is essential for smooth operation and longevity.

With a butt diameter of 3.344 inches, this yoke provides a robust connection point that can handle the torque and forces generated during operation. The center U-joint to weld dimension of 1.438 inches is critical for aligning the driveshaft correctly, ensuring that phasing is maintained throughout suspension travel. This alignment prevents vibrations and premature wear on the driveline components.

Installation tips for the 3526-35 include:

• Verify spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke to avoid driveline vibrations.
• Never force spline entry; this can lead to damage.

Additionally, the tube diameter wall of 3.500X0.083 adds to the overall strength and durability of the yoke, making it suitable for both street and off-road applications. The dust cover rubber noted in the specifications helps protect the internal components from debris, enhancing the lifespan of the yoke. In summary, the 3526-35 Ball Stud Yoke is a reliable choice for those looking to maintain or upgrade their driveline systems.
