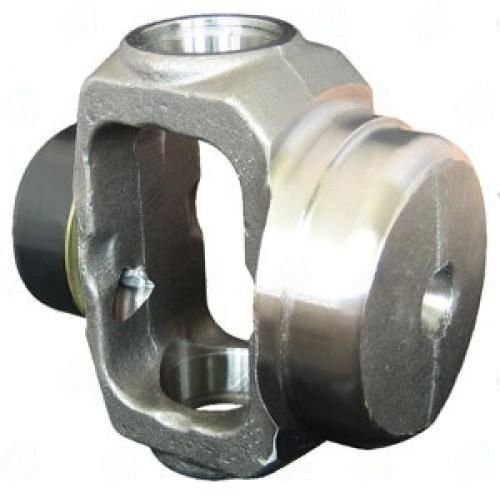

The 3526-28 Ball Stud Yoke is a critical component for connecting driveshafts in 1350 Series applications. With a ball stud length diameter of 0.500X0.635 inches, this yoke is engineered to handle the specific torque loads and alignment requirements typical in high-performance and heavy-duty setups. The butt diameter of 2.594 inches ensures a robust connection to the driveshaft, providing the necessary strength and stability.
This yoke’s design allows for effective axial movement, accommodating suspension travel without compromising performance. The center U-joint to weld measurement of 1.810 inches is optimized for seamless integration into your driveline system, ensuring proper phasing with the opposite yoke. Additionally, the tube diameter wall of 2.750X0.083 inches contributes to the overall durability of the assembly.
When installing the 3526-28, keep these tips in mind:
- Check spline engagement depth for proper fit.
- Ensure correct phasing with the opposite yoke to avoid vibrations.
- Never force spline entry; align properly to prevent damage.
- Inspect mating components for wear and compatibility.
Designed by UDS, the 3526-28 yoke also features a dust cover rubber, which protects the internal components from debris and moisture, enhancing longevity. This yoke is an essential part of your driveline assembly, ensuring reliable performance under demanding conditions.
