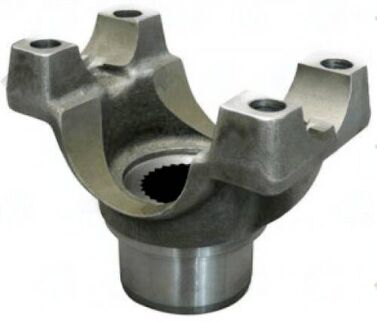

3504-60 – End Yoke – 1.276″ Splines Dia – 1.875″ Hub Dia

The 3504-60 End Yoke features a 1.276″ spline diameter, which is essential for a secure fit with 1350 Series U-joints. This specific spline diameter ensures optimal torque transfer and alignment, particularly in DANA 60 applications. With 29 splines, this yoke is engineered to handle the demands of high-performance drivetrains, providing reliability and durability under load.

The 1.875″ hub diameter creates a robust interface for attachment to your drivetrain components, ensuring that the yoke maintains its integrity during operation. Measuring 3.375″ from the center of the joint to the end, this yoke allows for proper phasing and alignment, which is critical for smooth operation and reduced wear on connected components.

Key specifications of the 3504-60 End Yoke include:

• 1.276″ spline diameter for secure U-joint fit
• 29 splines for enhanced torque transfer
• 1.875″ hub diameter for reliable attachment
• 3.375″ Cj to end measurement for proper alignment
• Compatible with DANA 60, U BOLT PART NUMBER: 3-94-18

When installing the 3504-60, ensure that you check the spline engagement depth and verify phasing with the opposite yoke. This attention to detail will help prevent premature wear and potential failure in your driveline system.
