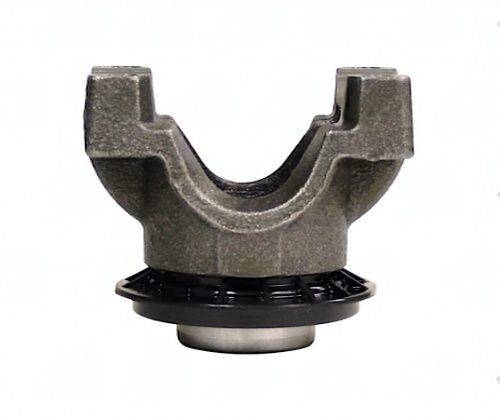

3504-09 – End Yoke – 1350 Series – 1.343″ Splines Dia – 1.812″ Hub Dia

The 3504-09 End Yoke is a critical component that connects your driveshaft to the powertrain or axle assembly, specifically designed for FORD 10.25 and 10.5 applications. With a spline diameter of 1.343 inches, this yoke ensures a precise fit within the designated output range, allowing for efficient torque transfer. The 31 splines provide a robust connection, while the 1.812-inch hub diameter accommodates the necessary U-joint cap diameter and cross width dictated by the 1350 Series specifications.

Proper installation is key to ensuring optimal performance. When fitting the 3504-09, verify the spline engagement depth and ensure correct phasing with the opposite yoke. This yoke features a 3.500-inch Cj to end measurement, which is crucial for maintaining the correct driveshaft length and alignment during operation. Additionally, the through hole measures 1.640 inches, allowing for secure fastening and stability.

• Check spline count and diameter before ordering to ensure compatibility.
• Install with the correct phasing to prevent vibrations and premature wear.
• Inspect the mating components for wear to maintain driveline integrity.

In summary, the 3504-09 End Yoke is engineered for reliability and performance in FORD applications, making it an essential part of your driveline assembly.
