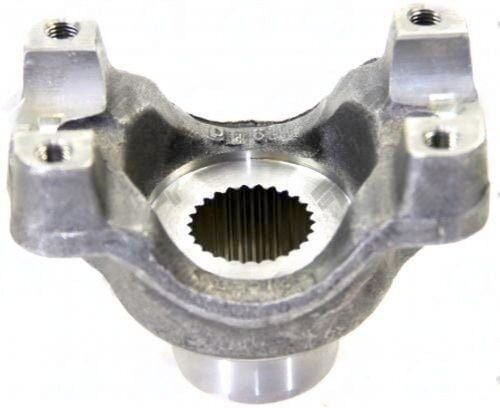

3504-06 – End Yoke – 1350 Series – 1.146″ Splines Dia – 1.552″ Hub Dia
$97.50
1 in stock
Description
The 3504-06 End Yoke is a vital component in the DANA 44 driveline, ensuring a robust connection between the driveshaft and the axle assembly. With its 1350 Series specification, this yoke is engineered for compatibility with standard U-joint dimensions, making it an ideal choice for both performance builds and everyday applications.
Key specifications of the 3504-06 include a 1.146″ spline diameter and a 1.552″ hub diameter, featuring 26 splines for secure engagement. The 3.000″ distance from the center of the joint to the end allows for proper alignment and fitment in various setups. The through hole measures 1.500″, providing additional versatility in mounting options.
When installing the 3504-06, keep the following in mind:
- Ensure proper spline engagement depth to avoid premature wear.
- Verify phasing with the opposite yoke to maintain driveline balance.
- Never force spline entry; align carefully to prevent damage.
This yoke is particularly suited for applications requiring durability and reliability, like those found in off-road vehicles and performance builds. The DANA 44 setup is known for its strength, making the 3504-06 a fitting choice for enthusiasts looking to enhance their driveline performance.
| Cj to end |
3.000" |
|---|---|
| Hub dia |
1.552 |
| Notes |
DANA 44 ,STRAP PART NUMBER: 3-70-28 |
| Partn number |
3504-06 |
| Series |
1350 |
| Splines count |
26 |
| Splines dia |
1.146 |
| Style |
BS |
| Through hole |
1.500" |
