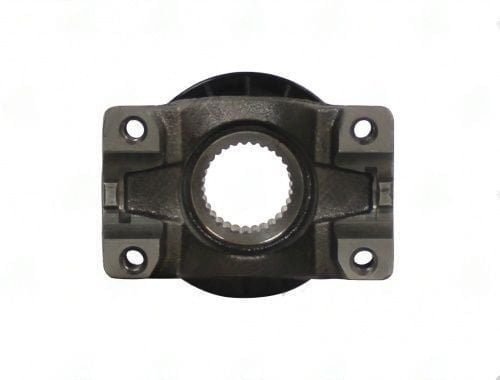

3504-03 – End Yoke – 1350 Series – 1.343″ Splines Dia – 1.812″ Hub Dia

The 3504-03 End Yoke is a crucial component for connecting your driveshaft to the powertrain or axle assembly. This yoke features a 1350 Series design, which is essential for ensuring compatibility with the correct U-joint cap diameter and cross width. With a spline diameter of 1.343 inches and a total of 31 splines, this yoke delivers reliable torque transfer, making it suitable for various applications including the E250 (1985 – 1998), F150 (2000 – 2006), F250 (1985 – 1998), and F350 (1985 – 1998) models.

One of the key specifications of the 3504-03 is its hub diameter of 1.812 inches. This dimension is critical for proper fitment and function. If you attempt to use a yoke with a different series, such as a 1310 or 1410, you risk misalignment and potential failure due to improper U-joint fitment. The 1350 Series yoke is specifically designed to handle the torque requirements of heavier-duty applications, making it a preferred choice for performance builders and fleet technicians alike.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to prevent vibration.
• Ensure the correct U-joint is used to match the 1350 Series specifications.
• Installation requires proper torque on fasteners to maintain integrity.
• Inspect mating components for wear to ensure optimal performance.

In summary, the 3504-03 End Yoke is engineered for durability and performance, ensuring that your driveline operates smoothly and efficiently.
