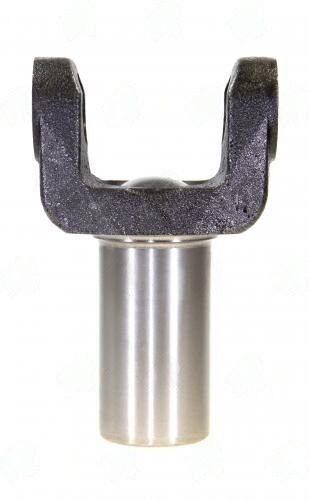

3503-326 Transmission Yoke 1350 Series , TH400 With Counter Bore , Splines: 32 , Hub Dia: 1.886 , Same As 3-3-2431X
$79.80
17 in stock
18 People watching this product now!
Description
The 3503-326 Transmission Yoke features a 1350 Series design with 31/32 X 1.378 splines and a 1.886″ hub diameter.
Full Description
The 3503-326 Transmission Yoke is a crucial component for high-performance drivetrains, particularly in GM applications. This yoke is designed to fit 1350 Series specifications, making it a reliable choice for various transmissions, including the Turbo 400 and TH-400. With a spline count of 32 and a diameter of 31/32 X 1.378 inches, this yoke ensures a secure connection to the output shaft, allowing for efficient power transfer.
Measuring 5.500 inches from the center U-joint to the end, the 3503-326 yoke features a hub diameter of 1.886 inches and a counter bore diameter of 0.5 inches. These dimensions are critical for proper fitment and alignment within the driveline. The design also mirrors the specifications of the Dana 3-3-2431X, ensuring compatibility and ease of replacement.
When installing the 3503-326, keep these points in mind:
- Check spline engagement depth to ensure proper fit.
- Verify phasing with the opposite yoke to prevent vibrations.
- Do not force spline entry; it should slide in smoothly.
This yoke is ideal for builders and technicians looking to maintain or upgrade GM drivetrains. The 3503-326 provides the durability and performance needed for both street and racing applications.
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 0.5 |
| Hub dia | 1.886 |
| Notes | Same as Dana 3-3-2431X |
| Partn number | 3503-326 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
