3503-286TO – Transmission Yokes – 1350 Series – 27/28 X 1.220 Splines – 1.600″ Hub Dia

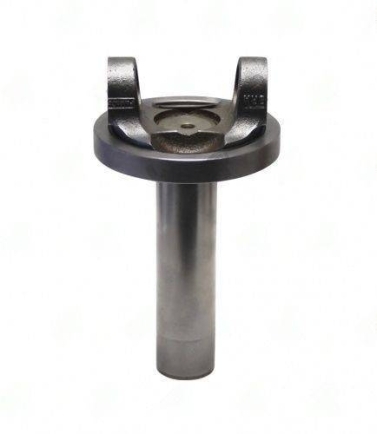

The 3503-286TO is a slip yoke from the 1350 series, specifically engineered for Ford applications. This yoke connects the driveshaft to the transmission, ensuring efficient power transfer and durability. With a spline count of 27/28 and a spline diameter of 1.220 inches, it is designed to handle the torque demands typical in Ford vehicles.

One of the critical dimensions of this yoke is its hub diameter, measuring 1.600 inches. This dimension is crucial for maintaining proper alignment and fitment with the mating components in the driveline. The counter bore diameter of 1.300 inches allows for a secure connection to the companion flange or tubing, preventing any unwanted movement during operation.

Key specifications include:

• Center U Joint To End: 7.930 inches
• Hub Diameter: 1.600 inches
• Counter Bore Diameter: 1.300 inches
• Splines Count Diameter: 27/28 X 1.220
• Series: 1350

When installing the 3503-286TO, ensure that you check the spline engagement depth and verify the phasing with the opposite yoke. Never force the spline entry; proper alignment is essential to avoid premature wear or failure. This yoke is a reliable choice for high-performance Ford builds, delivering the strength and precision needed for demanding applications.
