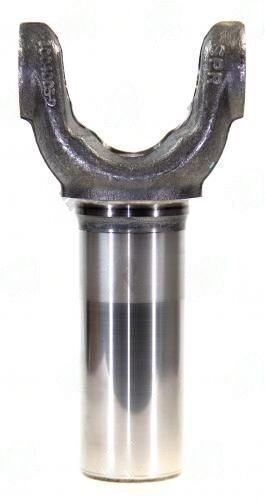

3503-220 – Transmission Yokes – 1350 Series – 22 X 1.496 Splines – 1.930″ Hub Dia

The 3503-220 Transmission Yoke is a critical component for Toyota Tundra applications, designed specifically for a 1350 Series configuration. Before installation, ensure you check the spline engagement depth. This yoke features a 22-spline count with an internal diameter of 1.496 inches, which is crucial for a snug fit into the transmission or transfer case. The hub diameter measures 1.930 inches, and the length from the center of the universal joint to the end of the spline is 7.106 inches.

Common mistakes during installation include mismatching spline counts or forcing the yoke onto the splines. Always verify that you have the correct 1350 Series universal joint that matches the yoke’s specifications. This yoke is designed to handle the torque transfer effectively, ensuring smooth operation of your drivetrain.

• Check spline count: 22 X 1.496 for proper fit.
• Verify hub diameter: 1.930 inches to ensure compatibility.
• Measure the length: 7.106 inches from the center U joint to the end.
• Match with a 1350 Series universal joint for optimal performance.
• Inspect for any signs of wear or damage before installation.

With the 3503-220, you can ensure reliable performance in your Toyota Tundra. Proper installation is key to avoiding issues down the line, so take the time to double-check all measurements and fitments.
