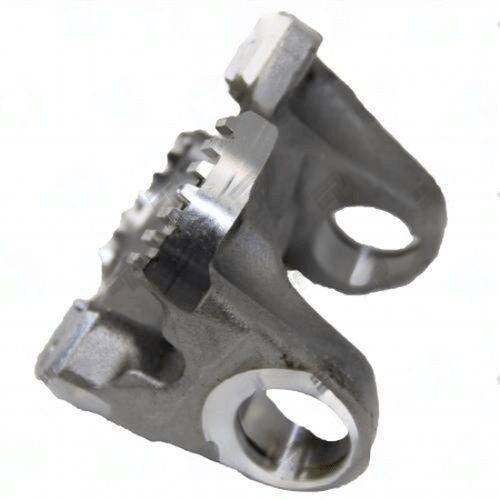

3502-391 Flange Yoke 1350 Serrated – 68036718AB Bolt Circle Diameter: 3.950, 2.874 x 2.874 (SQ), 0.430

SKU: 3502-391

$75.90

3 in stock

19 People watching this product now!

Description

The 3502-391 Flange Yoke, part of the 1350 Series, is designed for use with 2008-2018 Dodge 4500/5500 front driveshafts. This cross serrated yoke features a bolt hole circle diameter of approximately 3.937 inches (100.00 mm) and a squared pattern bolt hole centerline distance of about 2.782 inches (70.66 mm). The distance from the flat of the flange serrations to the center of the U-joint cap is approximately 2.375 inches (60.33 mm). It has an outside major swing diameter of 4.720 inches (119.88 mm) and bolt hole diameters of around 0.435 inches (11.05 mm). Weighing 4.1 lbs, this yoke ensures durability and a precise fit for heavy-duty applications.

Additional information

Bolt circle dia	3.950
Bolt hole dia	0.430
Cj to flat	2.375
Partn number	3502-391
Pilot dia	N/A , SERRATED
Series	1350
Bolt Holes	8
