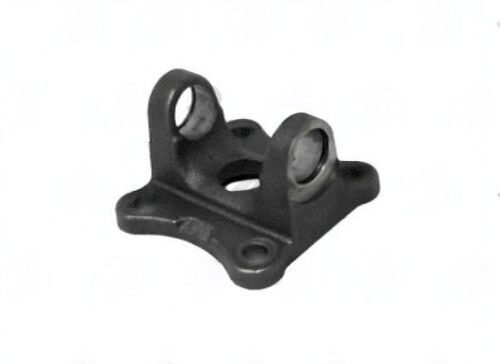

3502-280 – Flange Yokes – 1350 Series – Bolt Circle Dia 4.500″ – Pilot Dia 2.858, F

The 3502-280 Flange Yoke is a critical component in connecting your driveshaft to the transmission, transfer case, or differential. This yoke features a 1350 Series design, which is essential for ensuring compatibility with the correct U-joint cap diameter and cross width. Notably, the 3502-280 has a bolt circle diameter of 4.500 inches and a pilot diameter of 2.858 inches, making it distinct from other series yokes.

When installing the 3502-280, it’s crucial to verify the spline engagement depth and ensure proper phasing with the opposite yoke. Using the wrong series yoke can lead to misalignment and premature wear. For example, while a 1310 Series yoke may look similar, the differences in cap diameter and cross width mean it simply won’t fit correctly.

• Key Specifications:
• Bolt Circle Dia: 4.500 inches
• Bolt Hole Dia: 0.500 inches
• Pilot Dia: 2.858 inches
• Cj To Flat: 2.015 inches
• Bolt Holes: 4

Always check the specifications against your application to ensure optimal performance. The 3502-280 is designed specifically for 1350 Series applications, making it a reliable choice for both fabrication shops and performance builders.
