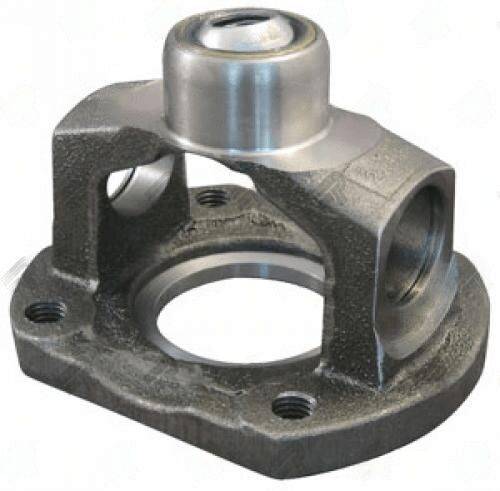

3502-21 CV Flange Yoke 1350 Ford Threaded Pilot: 2.000 Bolt Circle Diameter: 4.250 N3-83-024X Ford F250 , F350 ,F450 Front Driveshaft CV Head Flange
$67.86
+50 in stock
Description
The 3502-21 CV Flange Yoke is a critical component for Ford applications, specifically designed for the 1350 Series. This yoke connects the driveshaft to the transmission or differential, ensuring smooth power transfer. With a bolt circle diameter of 4.25 inches and a pilot diameter of 2 inches, it fits perfectly into the Ford CV flange setup used in models like the F250 Super Duty and Excursion from 2001 to 2004.
One of the standout features of this yoke is its compatibility with the discontinued Spicer part number 212024X, making it a reliable replacement option. It’s important to note that earlier Ford models (1999-2000) used longer 3.5-inch c/c CV heads, which are not compatible with this yoke. The 3502-21 is designed to handle the specific demands of the 1350 Series, ensuring proper fitment and functionality.
- Ball Stud Diameter: 0.5 inches
- Bolt Hole Diameter: M12-1.75
- C L To Face: 1.625 inches
- Pilot Type: F
- Brand: UDS
When installing the 3502-21, ensure proper spline engagement and verify phasing with the opposite yoke. This attention to detail will prevent premature wear and potential failure in your driveline system. Trust the 3502-21 for your Ford CV flange needs, and experience the difference in performance and reliability.
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 4.25 |
| Bolt hole dia | M12-1.75 |
| Brand | UDS |
| C l to face | 1.625 |
| Notes | Ford CV flange |
| Partn number | 3502-21 |
| Pilot dia | 2 |
| Pilot type | F |
| Series | 1350 |
