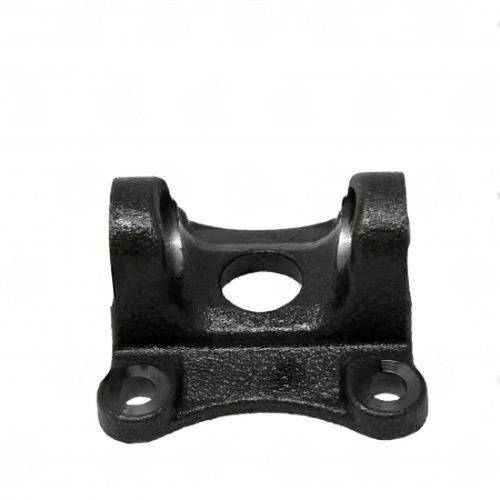

3502-1859 – Flange Yokes – 1350 Series – Bolt Circle Dia 4.750″ – Pilot Dia 2.953, F

When you’re ready to install the 3502-1859 Flange Yoke, ensure you have the right specifications in mind. This yoke connects the driveshaft to the transmission, transfer case, or differential, making it a critical component in your driveline setup. With a 1350 Series designation, it’s tailored for applications that require specific U-joint cap diameters and cross widths.

Before you slide this yoke onto the driveshaft, check the spline count and ensure it matches your output. A common mistake is mismatching the spline count, which can lead to improper engagement. The 3502-1859 features a bolt circle diameter of 4.750 inches and a pilot diameter of 2.953 inches, so double-check these measurements against your existing components.

• Verify the bolt hole diameter of 0.500 inches for compatibility with your fasteners.
• Ensure the Cj to flat measurement of 1.750 inches aligns with your setup.
• Check that you have four bolt holes for secure attachment.

When installing, remember to align the yoke properly with the opposite yoke to maintain phasing. Avoid forcing the spline entry; it should slide in smoothly. Proper installation of the 3502-1859 ensures reliable performance and longevity in your driveline system.
