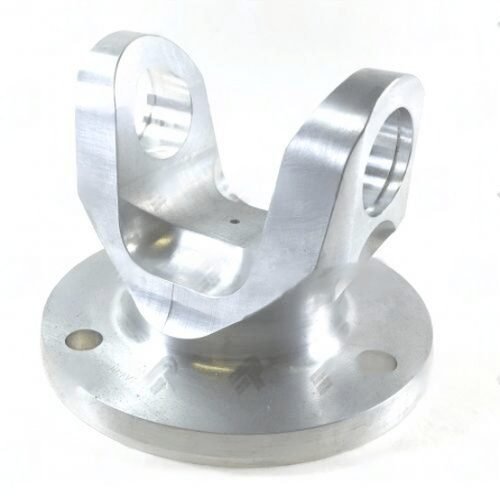

3502-110A – Flange Yokes – 1350 Series – Bolt Circle Dia 4.330″ – Pilot Dia 0.630, F”,

The 3502-110A Flange Yoke is engineered to provide a reliable connection between driveshafts and components such as transmissions or differentials. Designed for 1350 Series applications, this yoke ensures that the spline count and dimensions align perfectly, which is critical for maintaining driveline integrity and performance.

With a bolt circle diameter of 4.330 inches, the 3502-110A accommodates standard mounting configurations, while the pilot diameter of 0.630 inches (type F) ensures a snug fit that minimizes play and enhances durability. The yoke features four bolt holes, allowing for secure attachment to companion flanges.

When installing the 3502-110A, it’s essential to:

• Check spline engagement depth to ensure proper fit.
• Verify phasing with the opposite yoke to maintain alignment.
• Use the correct torque specifications for the bolts to prevent loosening.
• Inspect mating components for wear to avoid premature failure.

This yoke is particularly useful in high-performance applications where precision and strength are paramount. The 1350 Series designation indicates its capability to handle substantial torque loads while remaining lightweight compared to larger series yokes. The 3502-110A is an excellent choice for those looking to optimize their driveline setup.
