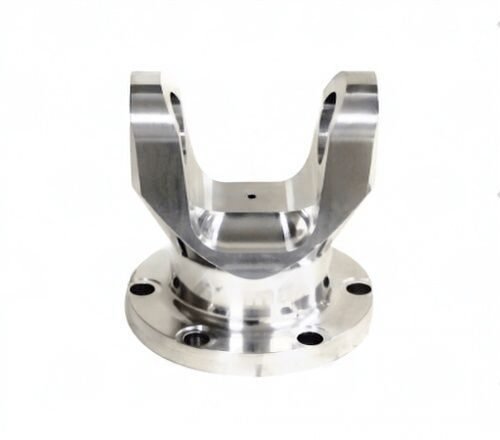

Upgrade your vehicle with the 3502-108A Flange Yoke, specifically designed for ’15-later Dodge Hellcat, ’13-later Dodge SRT 392, Scat Pack Challenger, TR6060, and Chrysler 300 models. This high-performance aluminum conversion flange yoke from the 1350 Series features an OD pilot type with a pilot diameter of 4.251 inches. It has a bolt circle diameter of 3.700 inches, with six bolt holes each measuring 0.425 inches in diameter. The centerline to face distance is 3.440 inches, and it’s classified as light duty (LD), ensuring compatibility with demanding yet less extreme applications.
3502-108A
$263.16
Available on backorder
11
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt circle dia |
3.700 |
| Bolt hole dia |
0.425 ,6HOLES |
| Cj to flat |
3.440 |
| Partn number |
3502-108A |
| Pilot dia |
4.251 ,OD |
| Series |
1350 |
