3502-1068 – Flange Yokes – 1350 Series – Bolt Circle Dia 3.300″ – Pilot Dia 3.937, OD

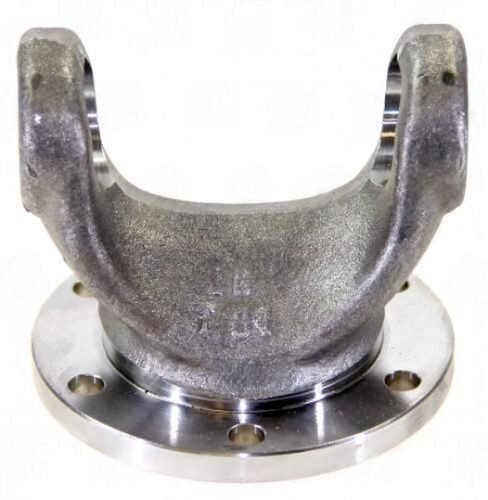

3502-1068 is a Flange Yoke that plays a crucial role in connecting the driveshaft to the transmission, transfer case, or differential. This specific configuration is part of the 1350 Series, which is essential for ensuring compatibility with the correct U-joint cap diameter and cross width. The 1350 Series yoke features a bolt circle diameter of 3.300 inches and a pilot diameter of 3.937 inches, making it distinct from other series like 1310 or 1410. Using the wrong series can lead to improper fitment and potential failure.

When installing the 3502-1068, ensure you check the spline engagement depth and verify phasing with the opposite yoke to avoid vibrations and premature wear. This yoke has six bolt holes, each with a diameter of 0.315 inches, allowing for secure attachment to companion flanges. The distance from the center of the yoke to the flat surface is 2.598 inches, which is critical for maintaining the correct alignment in your driveline setup.

• Always verify the spline count and ensure it matches your driveshaft.
• Check the pilot diameter for proper fitment in the housing.
• Ensure bolt holes are clean and free from debris before installation.
• Torque fasteners to the manufacturer’s specifications for optimal performance.
• Inspect the yoke regularly for signs of wear or damage.

In summary, the 3502-1068 Flange Yoke is designed specifically for 1350 applications, ensuring reliable performance and longevity in your driveline system.
