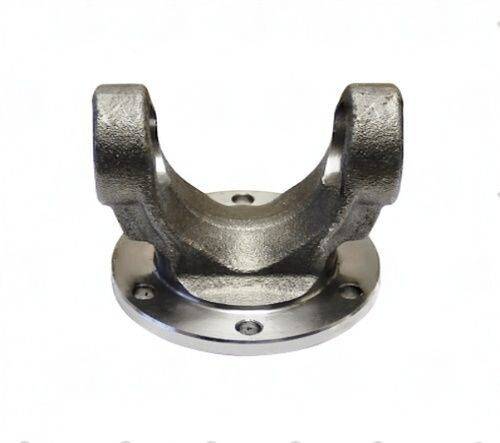

3502-1067 – Flange Yokes – 1350 Series – Bolt Circle Dia 3.300″ – Pilot Dia 3.937, OD

Replacing a worn or damaged flange yoke starts with getting the right part. The 3502-1067 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 1350 series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The 3502-1067 flange yoke removes both risks.

3502-1067 Flange Yoke — 1350 Series Specifications & Fitment

The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3502-1067 flange yoke specs: 3.300 bolt circle | 3.937 pilot | 6x0.315 bolt holes | 2.170" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the 3502-1067 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.

Key Features

• Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
• Bolt circle: 3.300 — must match axle/diff flange hole pattern exactly
• Pilot dia: 3.937 — centers yoke on companion flange, no play allowed
• 6 bolt holes at 0.315 — verify hole count and size
• CJ-to-flat: 2.170" — affects driveshaft working angle clearance
• Brand: UDS — direct-fit replacement

Specifications

• SKU: 3502-1067
• Brand: UDS
• Series: 1350
• Bolt Circle: 3.300
• Pilot Dia: 3.937
• Bolt Holes: 6
• Bolt Hole Dia: 0.315
• CJ to Flat: 2.170"
