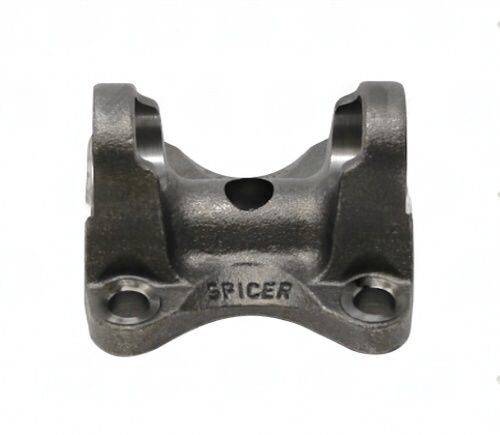

3502-063 Flange Yoke 1350 Series, Fits Dodge Ram 1500 Years 2015 + With Pilot Diameter: 0.630, Square Pattern

When you’re ready to install the 3502-063 Flange Yoke, make sure to check the specifications closely. This yoke is part of the 1350 Series and features a 0.630″ female pilot diameter, which is crucial for proper fitment. The bolt circle diameter measures 4.330″, and it has four bolt holes with a diameter of 0.500″. Before you proceed, verify that your existing components match these specifications to avoid any installation headaches.

One common mistake during installation is overlooking the flange face to centerline distance of 1.875″. Ensure that this measurement aligns with your setup to maintain proper alignment and function. Also, remember to check the spline engagement depth if applicable, as this can affect the overall performance of the driveline.

• Confirm the 4.330″ bolt circle matches your application.
• Double-check the 0.500″ bolt hole diameter for compatibility.
• Ensure the pilot diameter of 0.630″ fits snugly.
• Maintain the 1.875″ distance from the flange face to the centerline.
• Inspect the yoke for any signs of wear or damage before installation.

By following these steps, you can ensure a successful installation of the 3502-063 Flange Yoke, keeping your driveline components working smoothly and efficiently.
