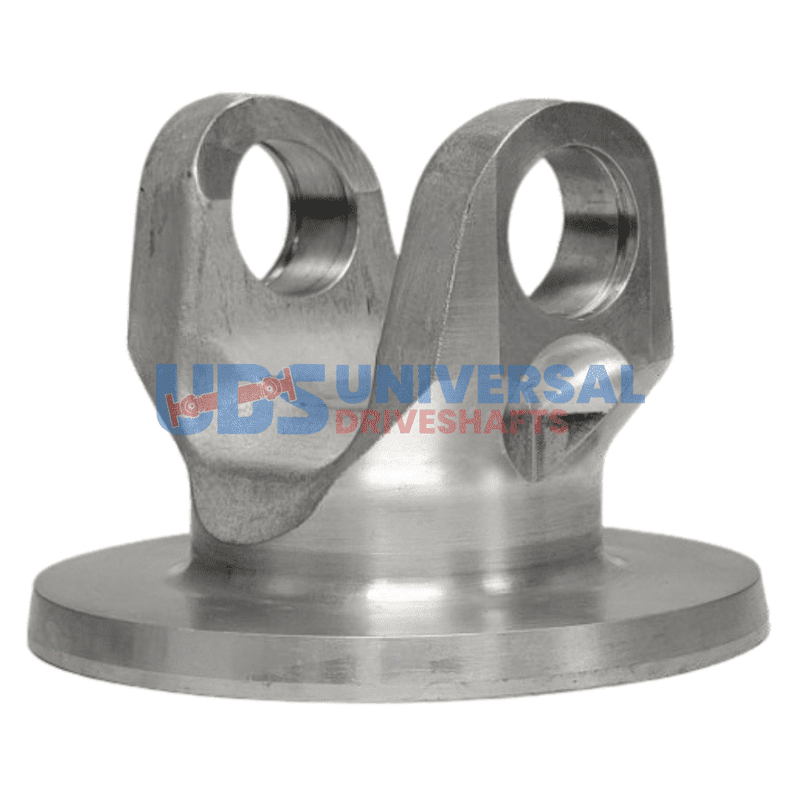

3502-0201 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange

The 3502-0201 Flange Yoke is a robust component designed for high-performance applications, particularly suited for Rover vehicles. This yoke features a 1350 Series configuration, which is critical for ensuring compatibility with the correct U-joint. The 1350 Series is distinct due to its specific cap diameter and cross width, which means using a different series could lead to improper fitment and potential failure.

Key specifications include a pilot diameter of 0.787 inches and a bolt circle diameter of 3.780 inches, with three bolt holes measuring 0.480 inches each. The centerline to face distance is 3.000 inches, making it essential to verify alignment during installation. The aluminum tri-flange construction not only provides strength but also helps reduce weight, which is a significant advantage in performance applications.

• Ensure proper spline engagement depth when installing the yoke.
• Check phasing with the opposite yoke to avoid vibrations.
• Use the correct torque specifications for the bolt holes to prevent loosening.
• This yoke fits Rover applications, making it a reliable choice for upgrades or replacements.

Overall, the 3502-0201 Flange Yoke delivers the necessary performance and reliability required in demanding driveline setups. Its specific dimensions and series compatibility make it a vital component for any serious builder or technician working on Rover drivetrains.
