3502-0166 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$136.89
10 in stock
Description

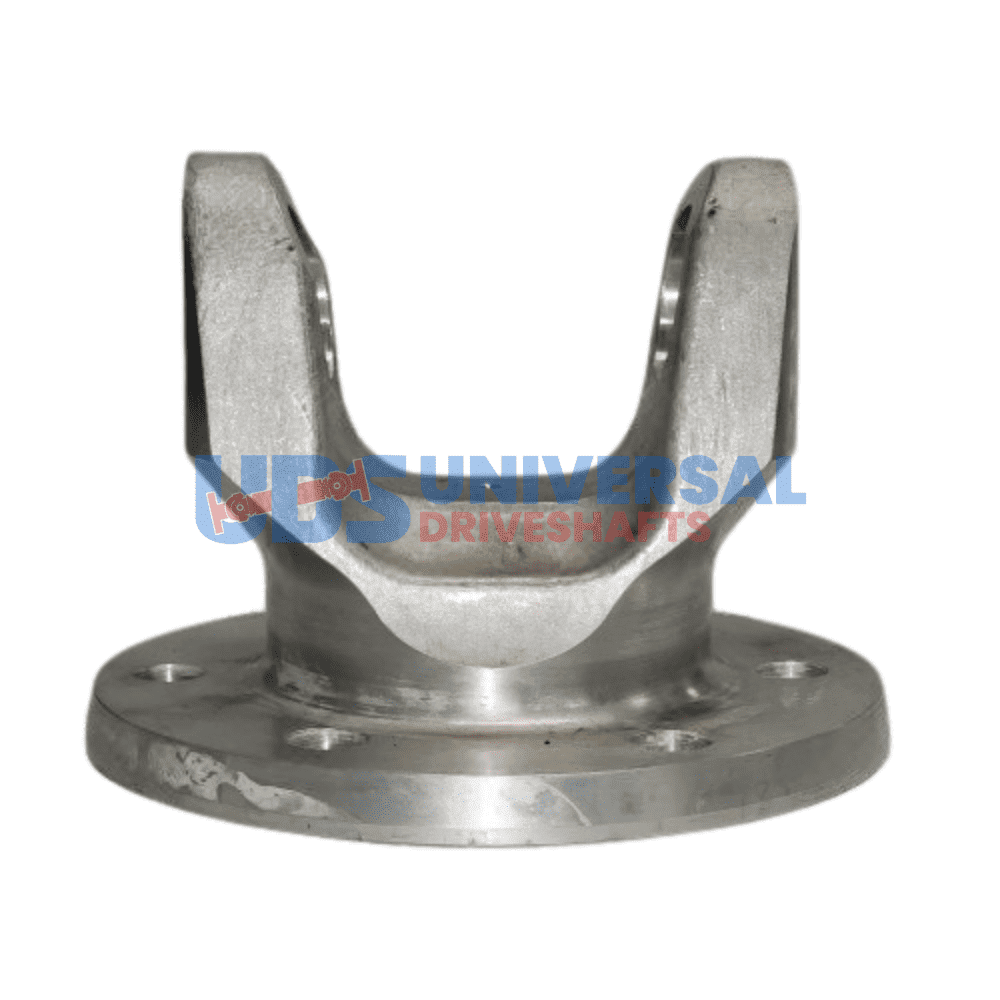

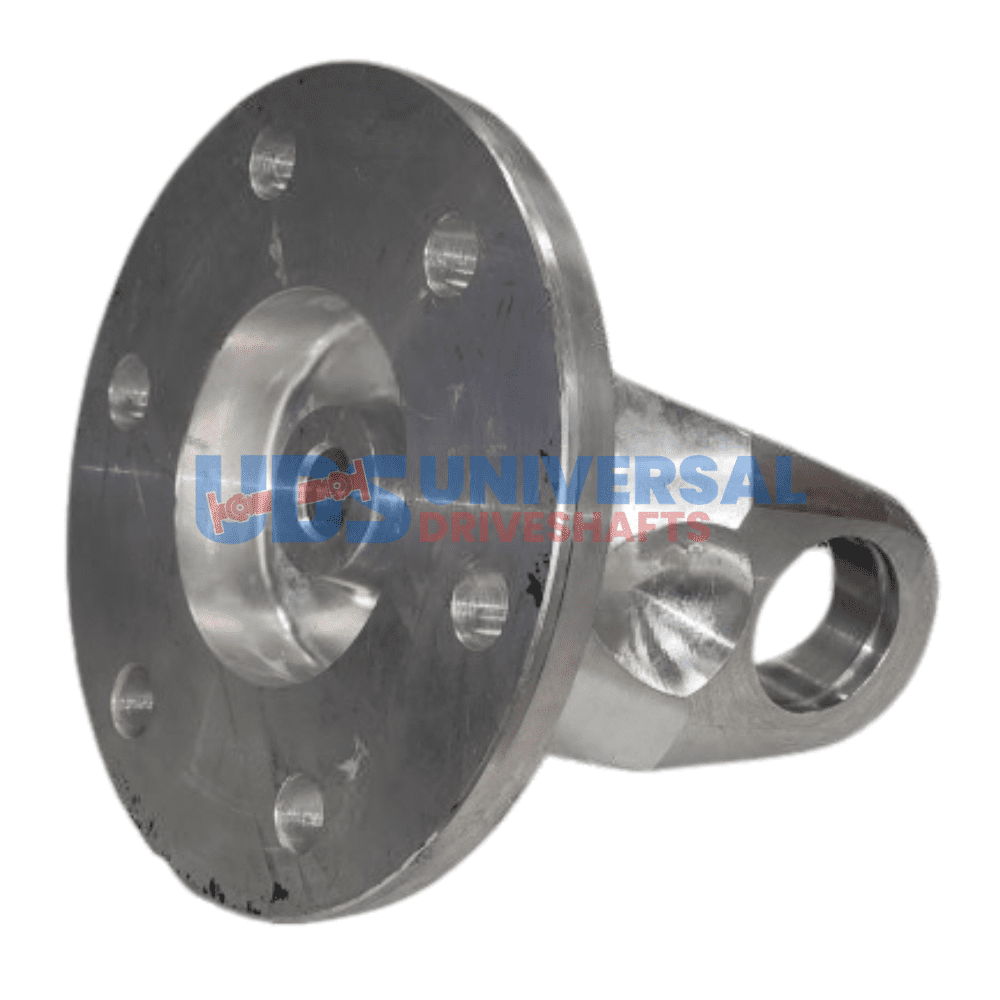

The 3502-0166 Flange Yoke is engineered to connect driveshafts to various driveline components, specifically designed for 1350 Series U-joints. This yoke features an aluminum 6061-T6 construction, providing a robust yet lightweight solution for high-performance applications. The precise dimensions of this yoke, including a bolt circle diameter of 4.134 inches and a pilot diameter of 0.630 inches, ensure a secure fit and optimal alignment in your driveline setup.
One of the key aspects of the 3502-0166 is its compatibility with both 105mm (4.134 inches) and 110mm (4.331 inches) bolt circle spacing, which allows for versatility in installation. The 14mm bolt holes and 16mm nose hole further facilitate easy mounting, making it an ideal choice for a range of vehicles, including those from BMW and Mercedes that often utilize 1350 Series components.
- Series: 1350
- Pilot Diameter: 0.630 inches
- Bolt Circle Diameter: 4.134 inches
- Bolt Hole Diameter: 0.559 inches
- Center Line to Face: 3.000 inches
When installing the 3502-0166, always verify the spline engagement depth and ensure proper phasing with the opposite yoke. This attention to detail will help prevent premature wear and potential failure in your driveline system. With its robust design and precise engineering, the 3502-0166 Flange Yoke is a reliable choice for any performance or fleet application.
| Partn number | 3502-0166 |
|---|---|
| Pilot dia | 0.630 |
| Bolt circle dia | 4.134 |
| Bolt hole dia | 0.559 |
| Series | 1350 |
| C l to face | 3.000 |
| Brand | UDS |
| Notes | Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750" |
| Bolt Holes | 6 |
