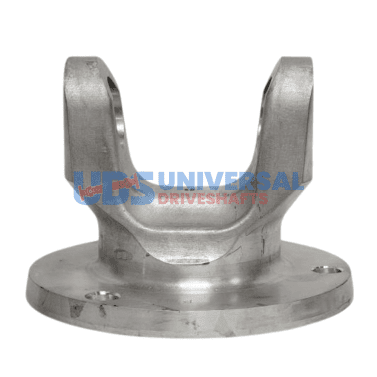

3502-0165 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$136.89
Out of stock
Description
The 3502-0165 Flange Yoke is engineered for 1350 Series applications, providing a robust connection between your driveshaft and drivetrain components. With a bolt circle diameter of 4.528 inches, this yoke ensures a secure fit, critical for maintaining alignment and reducing wear on your driveline.
Measuring a pilot diameter of 0.630 inches, the yoke is designed to fit snugly into the corresponding output shaft, allowing for optimal torque transfer. The bolt hole diameter of 0.480 inches accommodates standard fasteners, making installation straightforward. The centerline to face measurement of 3.000 inches is essential for proper alignment with other components, ensuring smooth operation.
This yoke is constructed from Aluminum 6061-T6, known for its excellent strength-to-weight ratio, making it ideal for performance applications where weight savings are crucial. The tri-flange design enhances stability and reduces the risk of failure under high-stress conditions.
- Series: 1350
- Pilot Diameter: 0.630 inches
- Bolt Circle Diameter: 4.528 inches
- Bolt Hole Diameter: 0.480 inches
- Centerline to Face: 3.000 inches
When installing the 3502-0165, ensure proper spline engagement and verify phasing with the opposite yoke. This attention to detail will help prevent premature wear and ensure reliable performance in your driveline system.
| Partn number |
3502-0165 |
|---|---|
| Pilot dia |
0.630 |
| Bolt circle dia |
4.528 |
| Bolt hole dia |
0.480 |
| Series |
1350 |
| C l to face |
3.000 |
| Brand |
UDS |
| Notes |
Aluminum 6061-T6 Tri Flange, 115mm (4.528) bolt circle, Hole to hole 3.921", 16mm nose hole, 12mm bolt holes |
| Bolt Holes |
3 |
