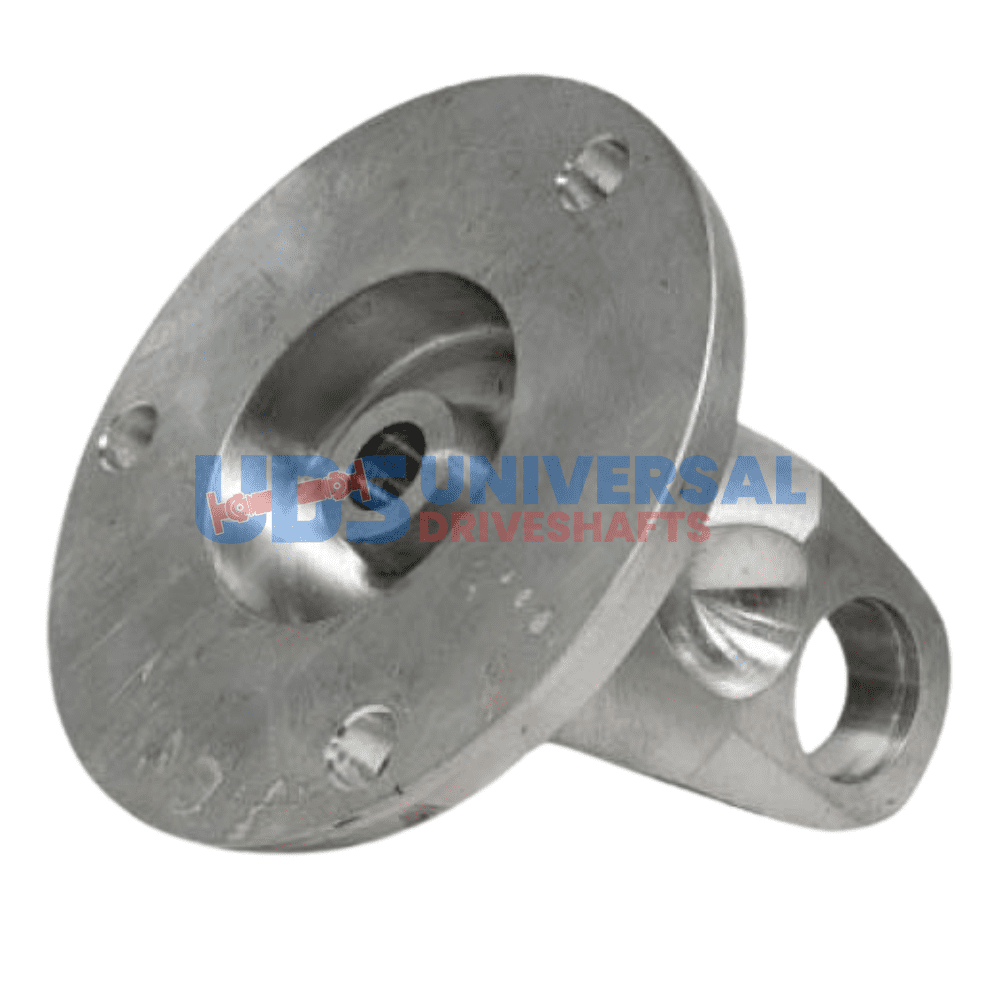

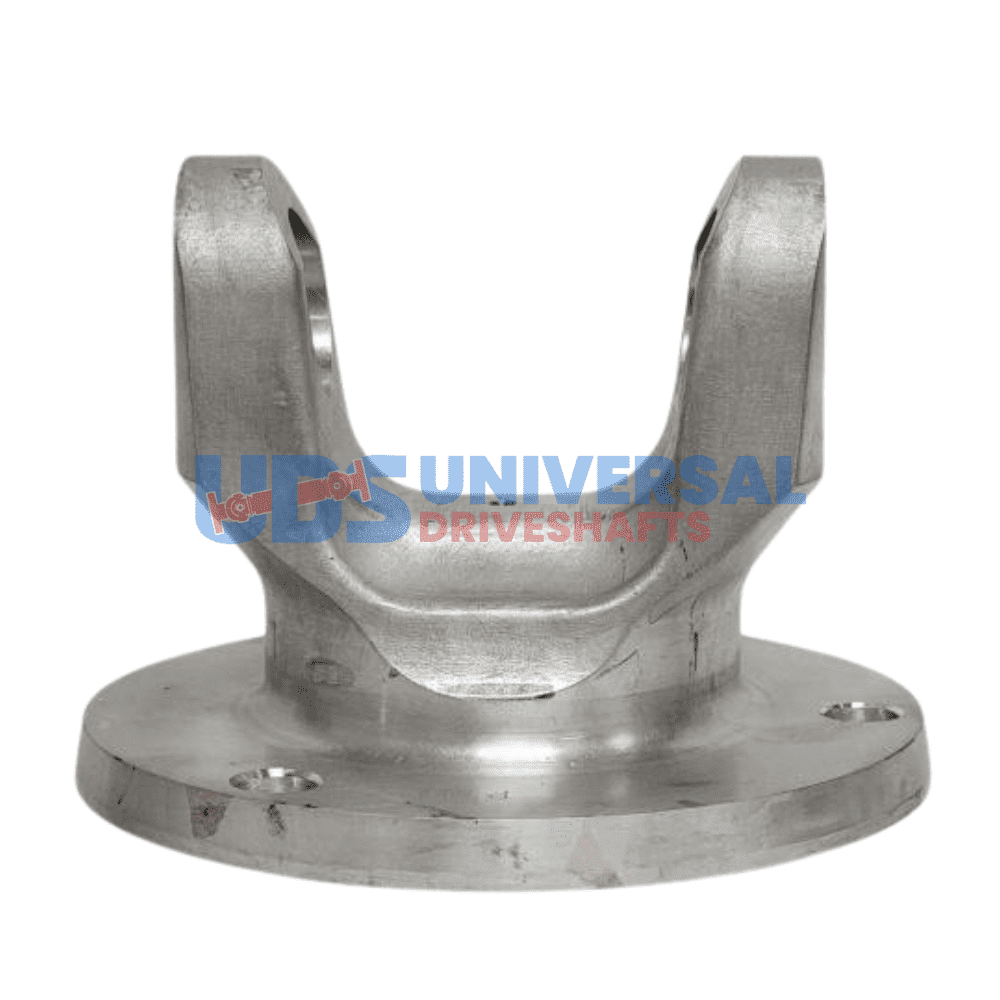

3502-0163 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$136.89
10 in stock
15 People watching this product now!
Description
Correct yoke selection starts with series, spline count, and diameter — 3502-0163 (Flange Yokes) is built to those exact specifications. Specifications include Pilot dia 0.630, Bolt circle dia 3.937, Bolt hole dia 0.480, Series 1350, C l to face 3.000.
1350 Series determines the mating U-joint cap diameter and cross width. Designed for 1350 applications. Key dimensions: Pilot dia 0.630, Bolt circle dia 3.937, Bolt hole dia 0.480.
Check the yoke ears for scoring or cap bore wear — damaged ears will shorten U-joint life.
Additional information
| Partn number | 3502-0163 |
|---|---|
| Pilot dia | 0.630 |
| Bolt circle dia | 3.937 |
| Bolt hole dia | 0.480 |
| Series | 1350 |
| C l to face | 3.000 |
| Brand | UDS |
| Notes | Aluminum 6061-T6 Tri Flange, 100mm (3.937) bolt circle, Hole to hole 3.409", 16mm nose hole, 12mm bolt holes |
| Bolt Holes | 3 |
