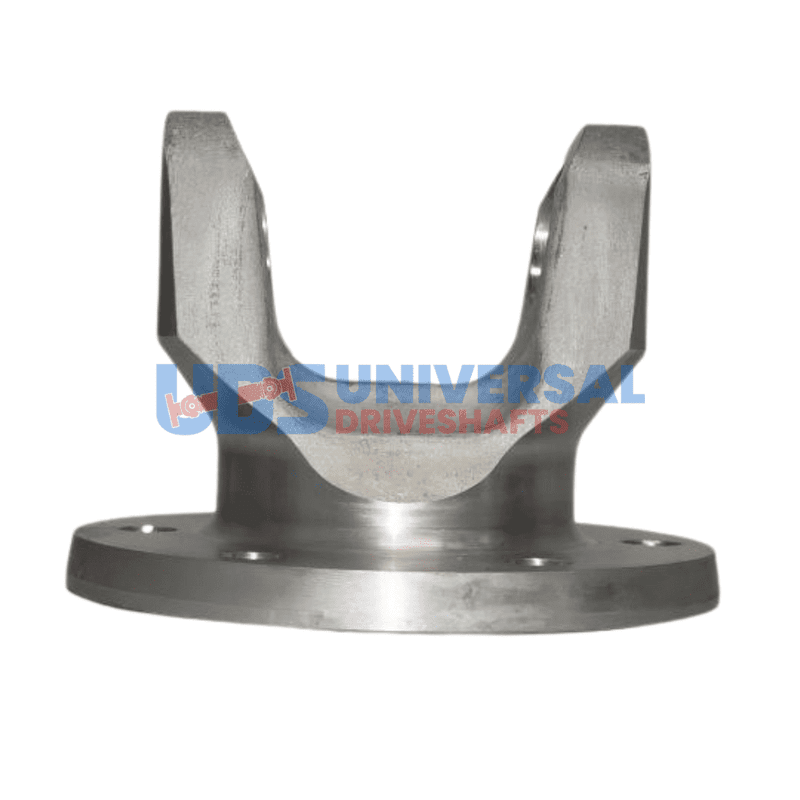

3502-0145 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange

The 3502-0145 Flange Yoke is engineered for robust performance in GM applications. With its 1350 Series design, this yoke connects the driveshaft to the transmission or differential, ensuring reliable torque transfer. The aluminum 6061-T6 construction provides a lightweight yet strong solution, making it ideal for both performance builds and everyday use.

Key specifications include a pilot diameter of 0.551 inches and a bolt circle diameter of 4.134 inches, which are critical for ensuring proper fitment and alignment within the driveline. The yoke features six bolt holes with a diameter of 0.559 inches, accommodating standard fasteners for easy installation. The centerline to face measurement of 3.000 inches allows for precise positioning in relation to other driveline components.

Installation of the 3502-0145 requires attention to detail. Ensure proper spline engagement and verify the phasing with the opposite yoke to prevent vibrations. This yoke is compatible with both 105mm (4.134 inches) and 110mm (4.331 inches) bolt circle spacing, providing flexibility for various setups.

• Series: 1350
• Pilot Diameter: 0.551 inches
• Bolt Circle Diameter: 4.134 inches
• Bolt Hole Diameter: 0.559 inches
• Material: Aluminum 6061-T6

In summary, the 3502-0145 Flange Yoke is a critical component for any GM driveline setup, designed to handle the demands of both performance and reliability.
