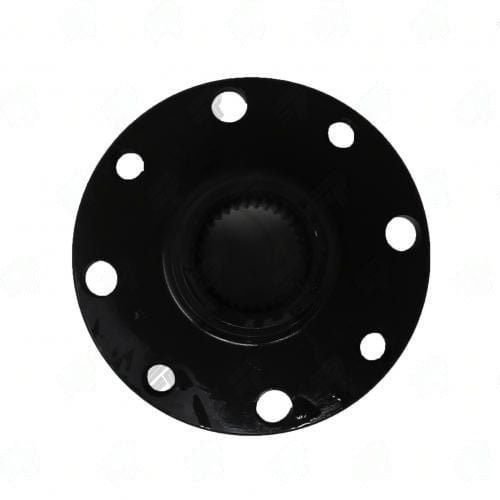

3501-322 – Companion Flanges – 1.401″ Splines Dia – 32 Splines – 4.250″ Bolt Circle Dia
$77.32
1 in stock
Description
When you’re working on the driveline of a 2007-2017 Jeep JK, the 3501-322 companion flange is a critical component. This flange connects the transfer case to the driveshaft, ensuring proper torque transfer and alignment. Key specifications include a 4.250″ bolt circle diameter, a spline count of 32, and a spline diameter of 1.401″. Before installation, make sure to verify that the mating surfaces are clean and free of debris.
One common mistake is neglecting to check the face runout. The flange face must be perpendicular to the rotational axis; otherwise, you’ll introduce vibration that can lead to premature wear on your driveline components. Use a dial indicator to check for runout before tightening the bolts.
- Ensure the pilot diameter is 2.000″ for a snug fit.
- Torque the M12 bolts in a star pattern to avoid uneven stress.
- Confirm that the through hole measures 2.000″ for proper alignment.
- Remember, this flange is designed specifically for the Jeep JK and is compatible with the 3594-2000U.
With the right installation techniques, the 3501-322 will provide a reliable connection in your driveline setup. Properly installed, it helps maintain the integrity of your vehicle’s performance, allowing you to tackle any terrain with confidence.
| Bolt circle dia | 4.250 |
|---|---|
| Hub dia | 1.943 |
| Notes | Rear 2007-2017 JEEP JK T-case Adapter, can use 3594-2000U, M12-1.75mm, 4 holes drilled for M12 |
| Partn number | 3501-322 |
| Pilot dia | 2.000 |
| Remaining stock | <10 |
| Splines count | 32 |
| Splines dia | 1.401 |
| Through hole | 2.000 |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Companion Flanges (24) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1301-231 Splines count 23 Splines dia 0.990" Hub dia 1.500" Through hole 1.530 Pilot dia 1.808 Bolt circle dia 3.340 Face to end 2.234 Notes Toyota Mid-ship, SQ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Hub dia 1.495 Notes Uses 2352-1001 (plunge) Partn number 1301-232 Pilot dia 3.937 Remaining stock <10 Splines count 23 Splines dia 990 Through hole 1.540 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Brand UDS Partn number 2-1-1313-4 Pilot dia 2.375 Bolt circle dia 3.125 Bore dia 1.250 Keyway 0.312 Outside dia 3.875 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 4.250 Hub dia 1.875 Notes Dana 60, 70 Pinion Conversion Flange Partn number 2010948 Pilot dia 2.000 Remaining stock <10 Splines count 29 Splines dia 1.276 Through hole 1.500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 100mm Hub dia 1.848 Notes Pinion Tri-Flange V6 12/18 Bolt hole Partn number 2801-301 Pilot dia 0 Remaining stock <10 Splines count 30 Splines dia 1.250 Through hole 1.000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 4.250 Hub dia 1.943 Notes Front 2007-2017 JEEP JK T-case Adapter Partn number 3-1-32JK Pilot dia 2.000 Remaining stock <10 Splines count 32 Splines dia 1.401 Through hole 2.000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 4.250 Hub dia 1.943 Notes Rear 2007-2017 JEEP JK T-case Adapter Partn number 3-1-32R Pilot dia 2.000 Remaining stock <10 Splines count 32 Splines dia 1.401 Through hole 2.000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Hub dia 1.554 Notes Uses 2352-1001 (plunge) Partn number 3101-262 Pilot dia 3.937 Remaining stock <10 Splines count 26 Splines dia 1.146 Through hole 1.535 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Hub dia 1.450" Notes Uses 2352-1001 (plunge) Partn number 3101-262M Pilot dia 3.937 Remaining stock <10 Splines count 26 Splines dia 1.146 Through hole 1.535 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Hub dia 1.400 Notes Uses 2352-1001 (plunge) Partn number 3101-262M2 Pilot dia 3.937 Remaining stock <10 Splines count 26 Splines dia 1.146 Through hole 1.535 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
