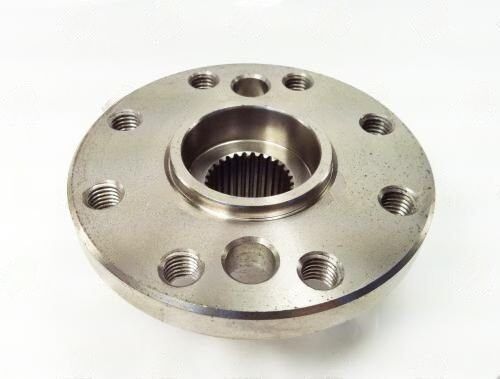

3501-291 – Companion Flanges – 1.263″ Splines Dia – 3.937″ Bolt Circle Dia – 1.875″ Hub Dia
$88.02
10 in stock
Description
The 3501-291 is a crucial component for Chrysler 9.25 differentials, specifically designed to ensure a secure connection between the differential and the driveshaft. This Companion Flange features a bolt circle diameter of 3.937 inches, providing a robust interface for mounting. With 29 splines and a spline diameter of 1.263 inches, it effectively handles the torque and rotational forces typical in these driveline setups.
When installing the 3501-291, it’s essential to ensure that the flange face is perpendicular to the rotational axis. Any runout can lead to vibrations, which can cause premature wear on associated components. Proper installation involves cleaning the mating surfaces and torquing the bolts in a star pattern to achieve even pressure across the flange.
- Key Specs:
- 29 Splines
- 1.263″ Spline Diameter
- 3.937″ Bolt Circle Diameter
- 1.875″ Hub Diameter
- 2.161″ Pilot Diameter
Additionally, the 3501-291 has threaded bolt holes designed for 12mm x 1.75 bolts, ensuring a secure fitment. The through hole measures 1.500 inches, allowing for proper alignment with the driveshaft. This flange is a reliable choice for maintaining the integrity of your Chrysler driveline, ensuring optimal performance and longevity.
| Bolt circle dia | 3.937 |
|---|---|
| Hub dia | 1.875 |
| Notes | Chy 9.25, threaded bolt holes |
| Partn number | 3501-291 |
| Pilot dia | 2.161 |
| Remaining stock | <10 |
| Splines count | 29 |
| Splines dia | 1.263 |
| Through hole | 1.500 |
