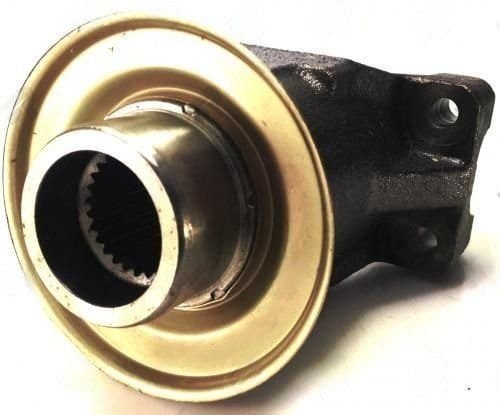

3304-282 – End Yoke – 1330F Series – 1.218″ Splines Dia – 1.812″ Hub Dia

When working with the 3304-282 End Yoke, it’s crucial to ensure that you have the right fit for your FORD 9 application. This yoke connects the driveshaft to the powertrain, delivering the torque needed for smooth operation. Key specifications include a spline diameter of 1.218″, a hub diameter of 1.812″, and a spline count of 28. Before installation, double-check these dimensions to avoid mismatches that can lead to assembly issues.

Here are some important installation tips:

• Verify the spline count and diameter against your existing components.
• Ensure the hub diameter matches your application requirements.
• Check the spline engagement depth to ensure proper fitment.
• Confirm the yoke style (UB) is compatible with your setup.
• Inspect the through hole measurement of 2.425″ for clearance.

Common mistakes include forcing the spline entry, which can damage both the yoke and the mating component. Always align the yoke properly before sliding it into place. The 3304-282 End Yoke is designed for reliable performance, but proper installation is key to avoiding premature wear or failure. Remember, this yoke is specifically engineered for the 1330F Series, so ensure you’re working with compatible parts. With careful attention to detail, you can achieve a successful installation that enhances your driveline’s performance.
