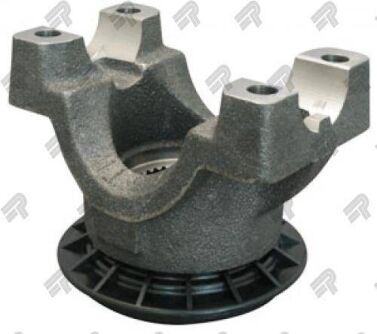

3304-08 – End Yoke – 1330F Series – 1.343″ Splines dia – 1.812″ Hub Dia
$96.04
1 in stock
12 People watching this product now!
Description
The 3304-08 pinion yoke is part of the 1330F series, designed for the Ford 10.25″ differential, classified as light duty (LD). This yoke features a spline count of 31 and a spline diameter of 1.343 inches. The hub diameter is 1.812 inches, with a through hole measuring 1.640 inches. The centerline to end distance is 3.500 inches, and it utilizes a U-bolt style configuration.
Compatible with the Dana u-bolt kit 2-94-58X, this yoke fits Ford 10.25″ differentials built from 1993 onward. The equivalent Ford part number is F3TZ-4851-A.
Applications for the Ford 10.25″ differential include:
- E250 (1985 – 1998, Rear)
- F150 (2000 – 2006, Rear)
- F250 (1985 – 1998, Rear)
- F350 (1985 – 1998, Rear)
Additional information
| Cj to end | 3.500" |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 10.25 ,U BOLTS PART NUMBER: 2-94-58X |
| Partn number | 3304-08 |
| Series | 1330F |
| Splines count | 31 |
| Splines dia | 1.343 |
| Style | UB |
| Through hole | 1.640" |
