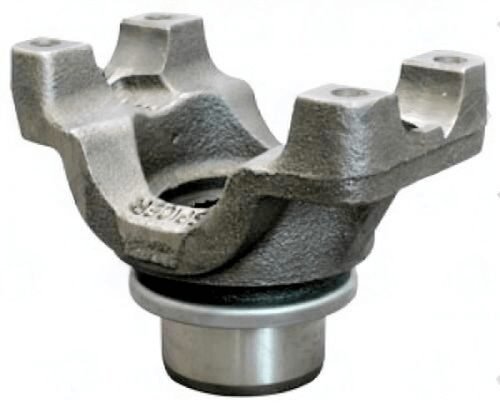

3304-01 – End Yoke – 1.146″ Splines Dia – 1.552″ Hub Dia – 26 Spline
$114.90
2 in stock
Description
The 3304-01 End Yoke is a crucial component for connecting driveshafts to transmissions, transfer cases, or differentials, specifically designed for DANA 44 applications. With a spline diameter of 1.146″ and 26 splines, this yoke ensures a secure and efficient connection. The 1330 Series designation is vital, as it determines the cap diameter and cross width of the mating U-joint, making it essential to use the correct series for compatibility.
When installing the 3304-01, pay attention to the following key specifications:
- 3.000″ Cj to end
- 1.552″ Hub diameter
- 1.500″ Through hole
- Style BS
Using a yoke that is not precisely matched can lead to misalignment and premature wear. For example, a 1350 Series yoke may look similar but will not fit the U-joint correctly due to differences in cap diameter. Always verify the spline count and diameter before ordering to avoid installation issues.
In summary, the 3304-01 End Yoke is engineered for reliability and performance in DANA 44 applications, ensuring that your driveline operates smoothly and efficiently. Make sure to check the spline engagement depth and phasing with the opposite yoke during installation to maintain optimal function.
| Cj to end |
3.000" |
|---|---|
| Hub dia |
1.552 |
| Notes |
DANA 44 |
| Partn number |
3304-01 |
| Series |
1330 |
| Splines count |
26 |
| Splines dia |
1.146 |
| Style |
BS |
| Through hole |
1.500" |
