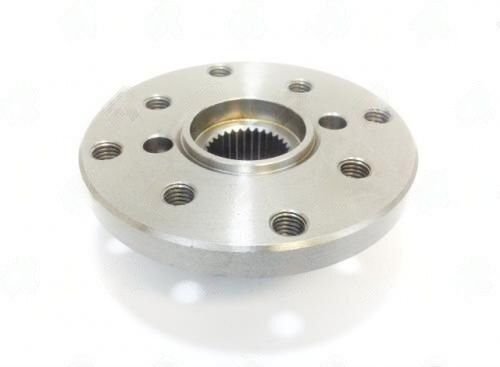

When working on a Ford Superduty transfer case, you might encounter a situation where the existing companion flange is worn or damaged, leading to vibrations or misalignment. The 3301-312 Companion Flange is the solution you need. It features dual threaded bolt patterns with an M12-1.75mm thread specification, ensuring a secure fit to the differential or transfer case.
This flange has a spline count of 31 and a spline diameter of 1.343 inches, which is critical for maintaining the integrity of the driveline. The hub diameter measures 1.812 inches, with a pilot diameter of 2.000 inches, allowing for precise alignment with the mating components. Additionally, the bolt circle diameter varies at 3.50 inches and 4.25 inches, providing flexibility during installation.
To avoid future issues, ensure that the flange face is perpendicular to the rotational axis during installation. Here are some tips for a successful installation:
- Clean all mating surfaces thoroughly before installation.
- Torque bolts in a star pattern to ensure even pressure.
- Check the face runout to prevent vibrations.
With the 3301-312 Companion Flange, you can confidently restore your Superduty transfer case, eliminating unwanted vibrations and ensuring smooth operation.
