3182-32 – Yoke Shafts – 1310 Series – 1.378″ Splines Dia – 32 Spline
$178.02
0 in stock
Description

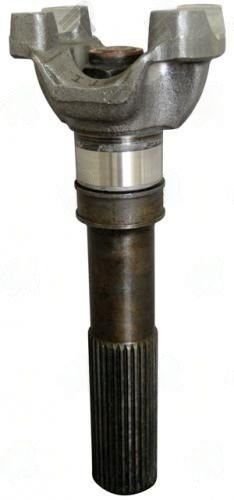

The 3182-32 Yoke Shaft is a critical component for CV conversion in GM Auto Trac front shafts. With a robust design featuring 32 splines and a major spline diameter of 1.378 inches, this yoke shaft ensures reliable performance under demanding conditions. The spline length measures 3.500 inches, while the centerline to end measurement is 9.500 inches, making it a perfect fit for various applications.
In GM vehicles, particularly those utilizing the Auto Trac system, the 3182-32 yoke shaft plays a vital role in connecting the driveshaft to the differential. This connection is essential for transferring power efficiently while accommodating the suspension’s movement. Proper installation is crucial; ensure you check the spline engagement depth and verify phasing with the opposite yoke to avoid vibrations and premature wear.
- 32 splines for enhanced torque transfer
- 1.378″ spline diameter for compatibility with standard U-joints
- 3.500″ spline length for optimal fit
- 9.500″ centerline to end measurement for precise alignment
- Designed specifically for GM Auto Trac applications
When working on GM front shafts, remember that the 3182-32 yoke shaft is engineered to handle the unique demands of these vehicles. Its durability and reliability make it an excellent choice for both fleet maintenance and performance builds. Trust the 3182-32 to deliver consistent power transfer and longevity in your driveline setup.
| Boot cap part | N/A |
|---|---|
| C l to end | 9.500 |
| Notes | CV conversion for GM Auto Trac Used on GM front shafts |
| Partn number | 3182-32 |
| Remaining stock | 10+ |
| Series | 1310 |
| Splines count | 32 |
| Splines dia | 1.378 |
| Splines length | 3.500 |
