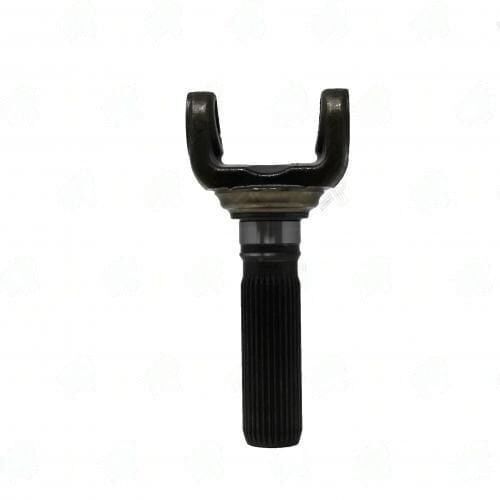

3182-311 – Yoke Shafts – 1310 Series – 1.330″ Splines Dia – 31 Spline
$78.65
2 in stock
Description
The 3182-311 Yoke Shaft is a critical component in your driveline setup, featuring a 1.330″ spline diameter that ensures a precise fit with compatible U-joints. This dimension is crucial as it directly affects the engagement with the transmission or differential, providing reliable torque transfer. With a spline count of 31, this yoke shaft is designed to handle significant loads, making it suitable for heavy-duty applications.
Measuring 3.750″ in spline length, the 3182-311 allows for adequate engagement within the mating components, which is essential for maintaining alignment and reducing wear over time. The centerline to end measurement of 7.125″ ensures proper fitment in various setups, while the 1.378″ (35mm) bearing surface provides a stable interface for smooth operation.
- Key Specs:
- 1.330″ spline diameter
- 31 splines
- 3.750″ spline length
- 7.125″ centerline to end
- 1.378″ (35mm) bearing surface
When installing the 3182-311, ensure that the spline engagement depth is checked and that the phasing with the opposite yoke is verified. This will prevent premature wear and potential failure in the driveline. The 3182-311 yoke shaft is an essential part of any robust driveline system, ensuring that power is transmitted efficiently and reliably.
| Boot cap part | N/A |
|---|---|
| C l to end | 7.125 |
| Notes | 1.378" (35mm) Bearing Surface |
| Partn number | 3182-311 |
| Remaining stock | 10+ |
| Series | 1310 |
| Splines count | 31 |
| Splines dia | 1.330 |
| Splines length | 3.750 |
