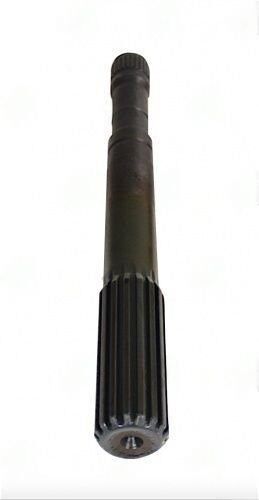

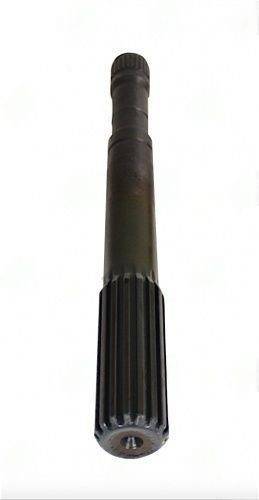

3181-161 – Stub & Midship Shaft – 16 X 1.375 Splines – Splines Length 7.375″ – End To Weld 11.750
$113.67
15 People watching this product now!
Description
The 3181-161 Stub & Midship Shaft features dual splines for compatibility with CVJ and standard applications.
Full Description
When working with the 3181-161 Stub & Midship Shaft, it's crucial to understand its unique design and application. This component features a dual spline stub for the 3152-1001 CVJ on one end and a standard 16 X 1.375" spline on the other, making it a versatile choice for various driveline setups. The overall length from end to weld is 11.750", with a spline length of 7.375". Before installation, double-check the spline count and ensure it matches the transmission output or transfer case. A common mistake is mismatching the spline sizes, which can lead to significant installation issues. Use a caliper to verify the spline diameter and count, ensuring a snug fit. Here are some key installation tips:
- Verify the spline count: 16 X 1.375" is critical for proper fitment.
- Measure the end to weld length: Ensure it's 11.750" for your application.
- Check the spline length: It should be 7.375" to match the CVJ requirements.
- Inspect mating components: Ensure they are clean and free of debris before assembly.
- Torque bolts to specification: This is vital for maintaining the integrity of the driveline.
Additional information
| Butt dia | N/A |
|---|---|
| End to weld | 11.750 |
| Notes | Dual spline stub for 3152-1001 CVJ on 1 end and standard 16/1.375"" spline on the other end used with: 3133-161 |
| Partn number | 3181-161 |
| Splines count dia | 16 X 1.375 |
| Splines length | 7.375 |
| Tube dia | N/A |
| Tube wall | N/A |
| Style | CVJ |
