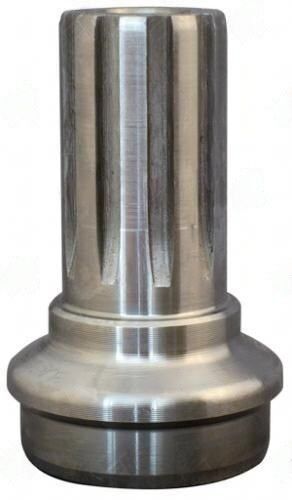

3154-131 – Stub & Midship Shaft – 10 X 1.178 Splines – Bearing Dia 1.181″ – Tube Dia 2.000
$51.63
Description
The 3154-131 Stub & Midship Shaft is a vital component in the driveline of various vehicles, ensuring efficient torque transfer from the transmission to the differential. This shaft features 10 X 1.178 splines, a bearing diameter of 1.181″, and a robust tube diameter of 2.000″, making it suitable for demanding applications.
In many driveline setups, particularly in performance and heavy-duty vehicles, the stub and midship shaft plays a critical role. Its fixed style design allows for a reliable connection without the complexities of additional joints, which can introduce unwanted play and potential failure points. The 3154-131 is engineered to handle the torque loads typical in high-performance scenarios, ensuring that your vehicle maintains optimal power delivery.
When installing the 3154-131, it’s essential to pay attention to the following:
- Verify spline count and ensure it matches the transmission output.
- Check the runout and balance to prevent vibrations during operation.
- Torque all fasteners to the manufacturer’s specifications for safety and reliability.
- Inspect the mating components for wear and compatibility.
This shaft is compatible with Nut: 500412-9 and is used with part 3104-1921, making it a versatile choice for various applications. Whether you’re building a performance vehicle or maintaining a fleet, the 3154-131 Stub & Midship Shaft is designed to deliver the durability and performance you need.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
1.816 |
| End to weld |
2.650 |
| Notes |
Nut: 500412-9 ,USED WITH: 3104-1921 |
| Partn number |
3154-131 |
| Remaining stock |
>10 |
| Splines count dia |
10 X 1.178 |
| Splines length |
1.427 |
| Tube dia |
2.000 |
| Tube wall |
0.095" |
| Style |
FIXED |
