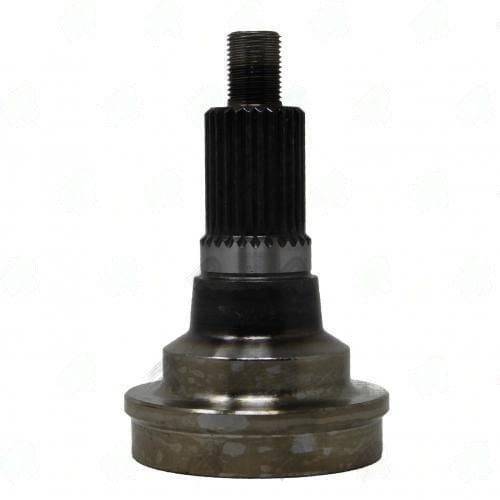

3153-303 – Stub & Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.260″ – Butt Dia 2.844
$62.65
Description
The 3153-303 Stub & Midship Shaft is engineered to deliver reliable torque transmission from the transmission to the differential. With a spline count of 26 X 1.125, this shaft ensures a secure fit and optimal performance in applications requiring precise alignment and strength. The 1.260″ bearing diameter is critical for maintaining proper engagement with the transmission output, while the 2.844″ butt diameter provides the necessary structural integrity to handle demanding loads.
Measuring 3.000″ in tube diameter and featuring a wall thickness of 0.083″, the 3153-303 is designed to withstand high rotational speeds without compromising balance or stability. The 1.375″ spline length is tailored for compatibility with specific driveline configurations, making it essential to match this dimension with your application. Additionally, the end-to-weld measurement of 3.500″ is crucial for ensuring proper installation and alignment within the driveline system.
When installing the 3153-303, keep these key points in mind:
- Verify spline count and diameter for compatibility.
- Ensure the tube length matches your application precisely.
- Check for proper phasing and alignment during installation.
- Torque all fasteners to the manufacturer’s specifications.
- Balance the assembly if any vibration occurs.
This shaft is specifically designed to be used with the 3104-264, making it a vital component for maintaining the integrity of your driveline system. Trust the 3153-303 for your next project to ensure reliability and performance.
| Bearing dia | 1.260 |
|---|---|
| Butt dia | 2.844 |
| End to weld | 3.500 |
| Notes | USE WITH: 3104-264 |
| Partn number | 3153-303 |
| Remaining stock | >10 |
| Splines count dia | 26 X 1.125 |
| Splines length | 1.375 |
| Tube dia | 3.000 |
| Tube wall | 0.083" |
| Style | FIXED |
