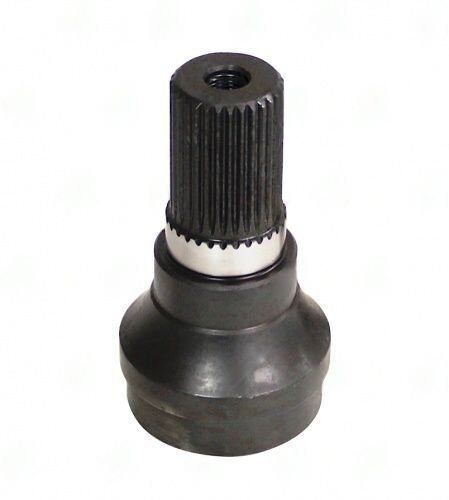

3153-301 – Stub & Midship Shaft – 30 X 1.260 Splines – Bearing Dia 1.378″ – Butt Dia 2.344
$80.07
Description
The 3153-301 Stub & Midship Shaft is a critical component in the driveline, specifically engineered to transmit torque effectively from the transmission to the differential. With 30 X 1.260 splines and a bearing diameter of 1.378 inches, this shaft is designed to handle significant torque loads while maintaining operational efficiency.
One of the key features of the 3153-301 is its robust construction, with a butt diameter of 2.344 inches and a tube diameter wall of 2.500 x 0.083 inches. This configuration not only enhances strength but also helps in controlling vibrations and maintaining stability at higher speeds. The length of the splines at 1.700 inches and the end-to-weld measurement of 3.875 inches ensure a precise fit for the application.
When installing the 3153-301, it’s essential to consider the following:
- Verify the spline count and ensure it matches the transmission output.
- Check the runout to prevent vibrations during operation.
- Torque bolts to the specified application requirements.
- Balance the assembly if any vibrations are detected.
This shaft is specifically used with the 3104-302, making it a vital part of the driveline system. The engineering behind the 3153-301 ensures that it meets the demands of both performance and durability, making it a reliable choice for any fabrication shop or fleet technician.
| Bearing dia | 1.378 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 3.875 |
| Notes | USED WITH: 3104-302 |
| Partn number | 3153-301 |
| Remaining stock | >10 |
| Splines count dia | 30 X 1.260 |
| Splines length | 1.700 |
| Tube dia | 2.500 |
| Style | FIXED |
