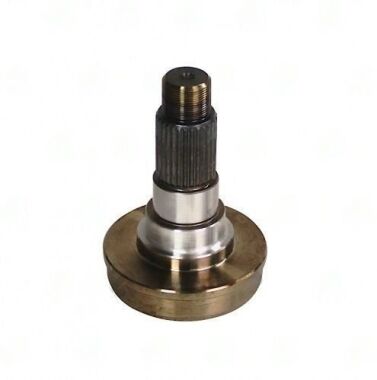

3153-292 – Stub & Midship Shaft – 29 X 1.276 Splines – Bearing Dia 1.378″ – Butt Dia 3.344
$84.87
Description
When diagnosing driveline issues, the 3153-292 Stub & Midship Shaft is a critical component to consider. If you’re experiencing vibrations or noise that correlate with vehicle speed, this shaft could be the source of your troubles. The 29 X 1.276 splines ensure a secure connection to the transmission and differential, while the 1.378″ bearing diameter provides the necessary support for smooth operation.
Failure of this shaft can lead to symptoms such as excessive play or misalignment, which can cause further damage to the driveline system. If you notice a clunking noise during acceleration or deceleration, it may indicate that the splines are worn or damaged. It’s essential to address these issues promptly to avoid more extensive repairs.
- Key Specs:
- 29 X 1.276 Splines
- 1.378″ Bearing Diameter
- 3.344″ Butt Diameter
- 3.500″ End to Weld
- 1.375″ Splines Length
To ensure proper installation, verify the length and fitment of the 3153-292 Stub & Midship Shaft. Pay close attention to the tube diameter wall of 3.500X0.083, as this affects the critical speed limits and overall performance of your driveline. If you’re replacing a worn shaft, make sure to check for any signs of wear in the U-joints and other connected components. This will help maintain the integrity of your entire driveline system.
| Bearing dia |
1.378 |
|---|---|
| Butt dia |
3.344 |
| End to weld |
3.500 |
| Partn number |
3153-292 |
| Remaining stock |
>10 |
| Splines count dia |
29 X 1.276 |
| Splines length |
1.375 |
| Tube dia |
3.500 |
| Tube wall |
0.083" |
| Style |
FIXED |
