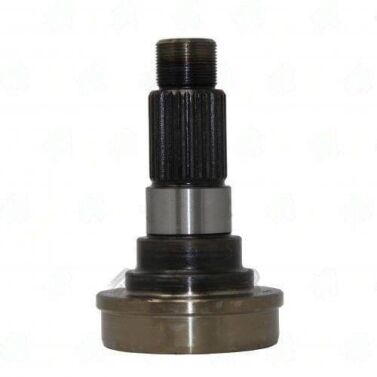

3153-291 – Stub & Midship Shaft – 29 X 1.276 Splines – Bearing Dia 1.378″ – Butt Dia 2.844
$78.40
Description
When working with the 3153-291 Stub & Midship Shaft, it’s essential to ensure that all specifications align perfectly with your application. This shaft features 29 X 1.276 splines, which are critical for maintaining torque transmission from the transmission to the differential. The bearing diameter measures 1.378 inches, while the butt diameter is 2.844 inches, making it a robust choice for various setups.
Before installation, double-check the spline count and ensure it matches your existing components. A common oversight is mismatching the spline count, which can lead to improper fitment and potential failure. The splines length is 1.375 inches, and the tube diameter wall is 3.000 X 0.083, ensuring strength and durability under load.
Here are some key installation tips:
- Verify the spline count against the output shaft to avoid fitment issues.
- Check the runout before installation to prevent vibrations.
- Torque all bolts to the manufacturer’s specifications for secure installation.
- Balance the assembly if any vibrations are detected post-installation.
With an end-to-weld measurement of 3.500 inches, this shaft is designed for specific applications, ensuring a precise fit. Always consult your vehicle’s specifications to confirm compatibility. The 3153-291 is engineered to handle the demands of your driveline, providing reliable performance when installed correctly.
| Bearing dia |
1.378 |
|---|---|
| Butt dia |
2.844 |
| End to weld |
3.500 |
| Partn number |
3153-291 |
| Remaining stock |
>10 |
| Splines count dia |
29 X 1.276 |
| Splines length |
1.375 |
| Tube dia |
3.000 |
| Tube wall |
0.083" |
| Style |
FIXED |
