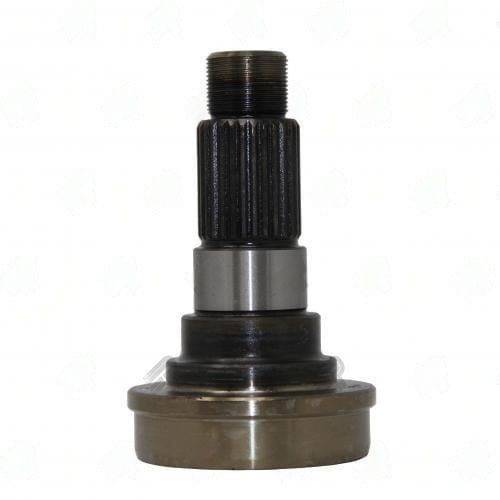

3153-254 – Stub & Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.181″ – Butt Dia 2.375
$63.93
Description
The 3153-254 Stub & Midship Shaft is a critical component for reliable torque transfer in driveline systems. With its 26 X 1.125 splines and a bearing diameter of 1.181″, this shaft is engineered to fit seamlessly with applications like the 3101-262 and 3104-266. The fixed style design ensures stability under load, making it a dependable choice for both performance and fleet applications.
What sets the 3153-254 apart is its specific dimensions and spline configuration. The 2.500″ tube diameter and 0.065″ wall thickness contribute to its strength while maintaining a manageable weight. If you attempt to use a shaft with different spline counts or dimensions, you risk improper fitment, which can lead to vibration issues or even failure under load. The precision of the 1.375″ spline length is crucial for ensuring proper engagement with the mating components.
- Verify phasing marks during installation to avoid vibration.
- Check runout and balance the assembly if necessary.
- Torque bolts to manufacturer specifications for optimal performance.
- Ensure compatibility with 3101-262 and 3104-266 for best results.
In summary, the 3153-254 Stub & Midship Shaft is designed for those who demand reliability and precision in their driveline components. Its unique specifications make it a vital part of any drivetrain setup.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.375 |
| End to weld |
3.375 |
| Notes |
USED WITH: 3101-262, 3104-266 |
| Partn number |
3153-254 |
| Remaining stock |
>10 |
| Splines count dia |
26 X 1.125 |
| Splines length |
1.375 |
| Tube dia |
2.500 |
| Tube wall |
0.065" |
| Style |
FIXED |
