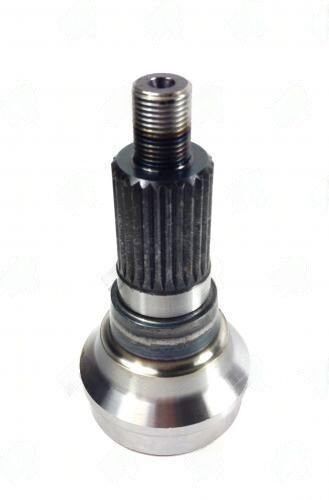

3153-232 – Stub & Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.181″ – Butt Dia 2.250
$63.26
Description
The 3153-232 Stub & Midship Shaft is a critical component designed for specific applications, particularly in MKT Limo setups. This shaft features 26 X 1.125 splines, ensuring a robust connection that can handle the torque demands typical in luxury vehicles. The bearing diameter of 1.181″ and butt diameter of 2.250″ provide the necessary strength and stability required for smooth operation.
One of the key aspects of the 3153-232 is its compatibility with OEM tubing, specifically designed to work with the 3104-264 series. This ensures that installation is straightforward and maintains the integrity of the driveline system. The splines length of 1.375″ is optimized for effective engagement, while the tube diameter of 2.362″ and wall thickness of 0.056″ contribute to the overall durability and performance of the shaft.
When installing the 3153-232, it’s essential to follow these guidelines:
- Ensure proper alignment of the splines during installation.
- Use the specified 858018 nut for secure fastening.
- Verify that the shaft is balanced to prevent vibrations.
In summary, the 3153-232 Stub & Midship Shaft is engineered to meet the demands of high-performance driveline applications, making it an excellent choice for those working on MKT Limos.
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.250 |
| End to weld | 3.375 |
| Notes | USED WITH: 3104-264 ,Uses 858018 nut / Used on MKT Limo fits OEM tubing |
| Partn number | 3153-232 |
| Remaining stock | >10 |
| Splines count dia | 26 X 1.125 |
| Splines length | 1.375 |
| Tube dia | 2.362 |
| Tube wall | 0.056 |
| Style | FIXED |
