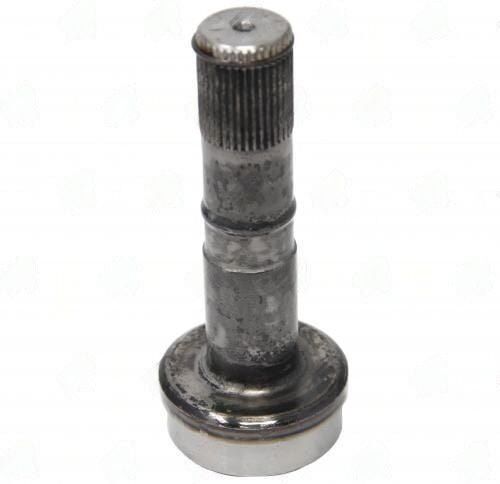

3142-1082 – Stub & Midship Shaft – 38 X 1.140 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$92.89
Description
The 3142-1082 Stub & Midship Shaft is engineered for reliable torque transmission in your driveline setup. With 38 X 1.140 splines and a butt diameter of 2.344″, this shaft is designed to fit specific applications where precision is paramount. The splines length of 1.140″ and an end-to-weld measurement of 1.200″ ensure a snug fit, reducing the risk of failure due to misalignment or improper installation.
Choosing the right stub and midship shaft is crucial. If you were to use a shaft with a different spline count or diameter, you could face significant issues, including improper fitment and potential driveline failure. The 3142-1082’s tube diameter wall of 2.500X0.083 provides the necessary strength while keeping weight in check, making it suitable for both performance and standard applications.
- Verify phasing marks during installation to ensure proper alignment.
- Check runout to avoid vibration issues that can lead to premature wear.
- Torque bolts to specification to maintain integrity under load.
- Balance the shaft if any vibrations are detected post-installation.
In summary, the 3142-1082 Stub & Midship Shaft is a vital component for maintaining the efficiency and reliability of your driveline. Its specific dimensions and spline configuration set it apart from other shafts, ensuring that it meets the demands of your application.
| Butt dia | 2.344 |
|---|---|
| End to weld | 1.200 |
| Partn number | 3142-1082 |
| Remaining stock | >10 |
| Splines count dia | 38 X 1.140 |
| Splines length | 1.140 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | Slip |
